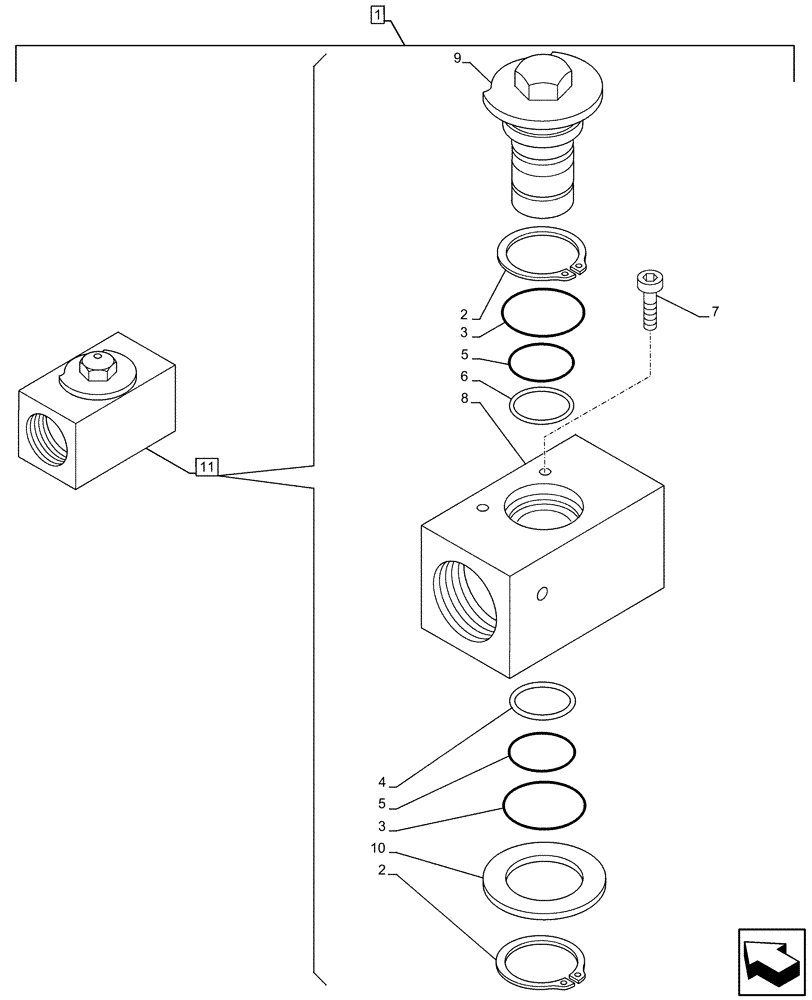

Запчасти Case CX250D LC LR (88.100.35[076]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, ARM, STOP, VALVE, COMPONENTS (88) - ACCESSORIES

1

KG1BP604-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Incl in 11

1шт.

3

154543A1

O-RING

2шт.

4

154012A1

BACK-UP RING

1шт.

5

154519A1

O-RING

2шт.

6

153994A1

BACK-UP RING

1шт.

7

NSS

NOT SOLD SEPARAT

Bolt, Incl in 11

1шт.

8

NSS

NOT SOLD SEPARAT

Case, Incl in 11

1шт.

9

NSS

NOT SOLD SEPARAT

Bolt, Incl in 11

1шт.

10

NSS

NOT SOLD SEPARAT

Washer, Incl in 11

1шт.

11

KHV10430

SHUT-OFF VALVE

ASSY, Incl 2 - 10

2шт.
