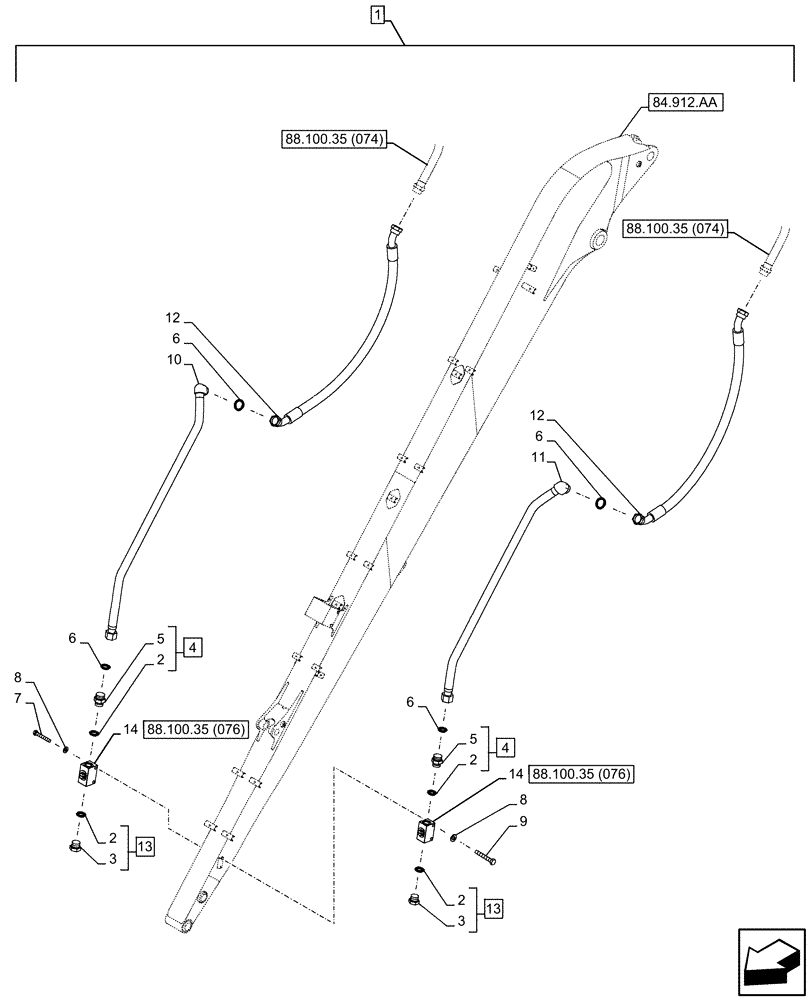

Запчасти Case CX250D LC LR (88.100.35[075]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, ARM, STOP, VALVE, LINE (88) - ACCESSORIES

1

KG1BP604-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

152211A1

O-RING

4шт.

3

NSS

NOT SOLD SEPARAT

Plug, Incl in 13

2шт.

4

KHJ1349

ADAPTER

ASSY, Incl 2 (Qty 2), 5

2шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

2шт.

6

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

7

862-12080

HEX SOC SCREW,M12 x 80mm, Cl 12.9

2шт.

8

150811A1

WASHER

4шт.

9

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

2шт.

10

KBV17050

HYD TUBE

RH

1шт.

11

KBV17040

HYD TUBE

LH

1шт.

12

KRV27950

HYDRAULIC HOSE

2шт.

13

162659A1

PLUG

ASSY, Incl 2 (Qty 2), 3

2шт.

14

KHV10430

SHUT-OFF VALVE

ASSY

2шт.
