(88.100.35[072]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE

Запчасти Case CX250D LC LR (88.100.35[072]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

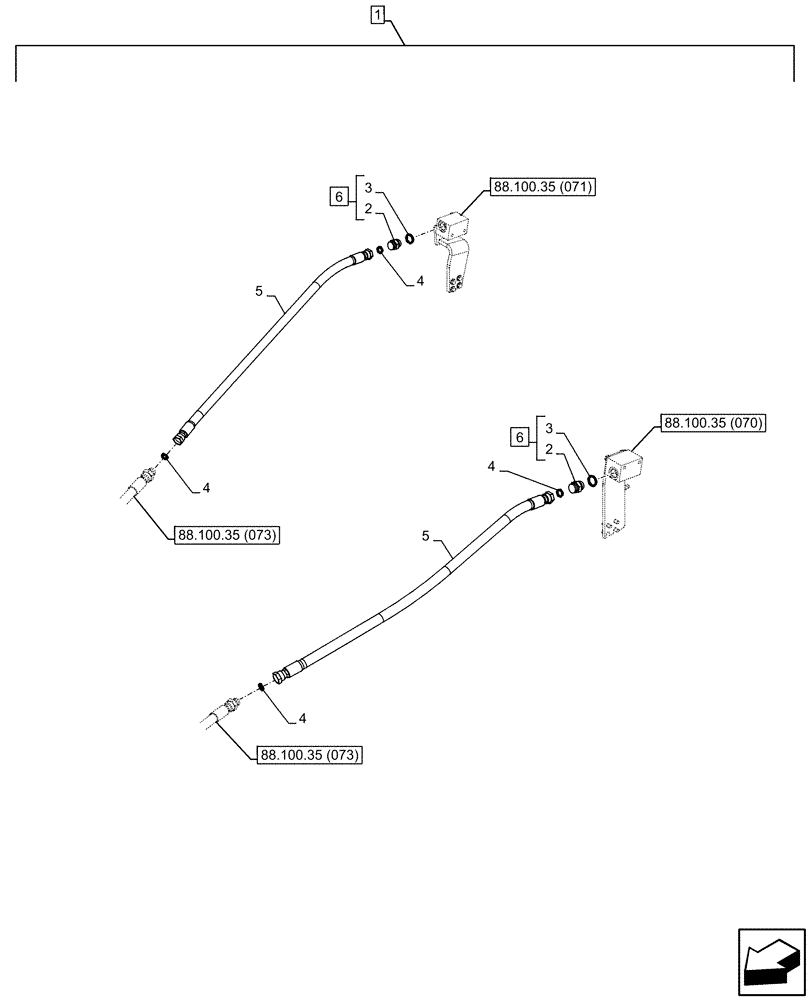

Схема запчастей Case CX250D LC LR - (88.100.35[072]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES
2
6
5
88.100.35 (070)
88.100.35 (071)
4
3
2
6
4
4
4
88.100.35 (073)
1
5
88.100.35 (073)
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP604-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

2шт.

3

154523A1

O-RING

2шт.

4

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

5

KBJ25710

HYDRAULIC HOSE

Manifold Valve to Boom Line

2шт.

6

KHJ1349

ADAPTER

ASSY, Incl 2, 3

2шт.
