(88.100.35[069]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, JOYSTICK, RH

Запчасти Case CX250D LC LR (88.100.35[069]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, JOYSTICK, RH (88) - ACCESSORIES

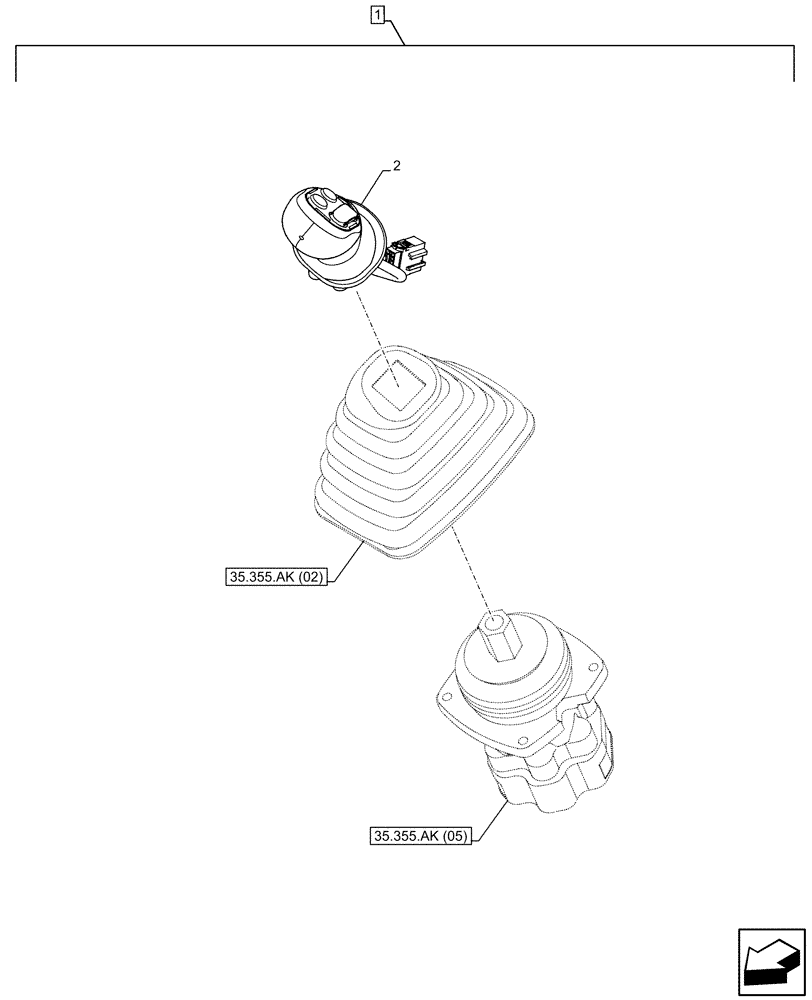

Схема запчастей Case CX250D LC LR - (88.100.35[069]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, JOYSTICK, RH (88) - ACCESSORIES
2
35.355.ak (05)
35.355.ak (02)
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP604-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ28550

JOYSTICK

Switch Proportional, RH

1шт.

Выбрано товаров: 3
