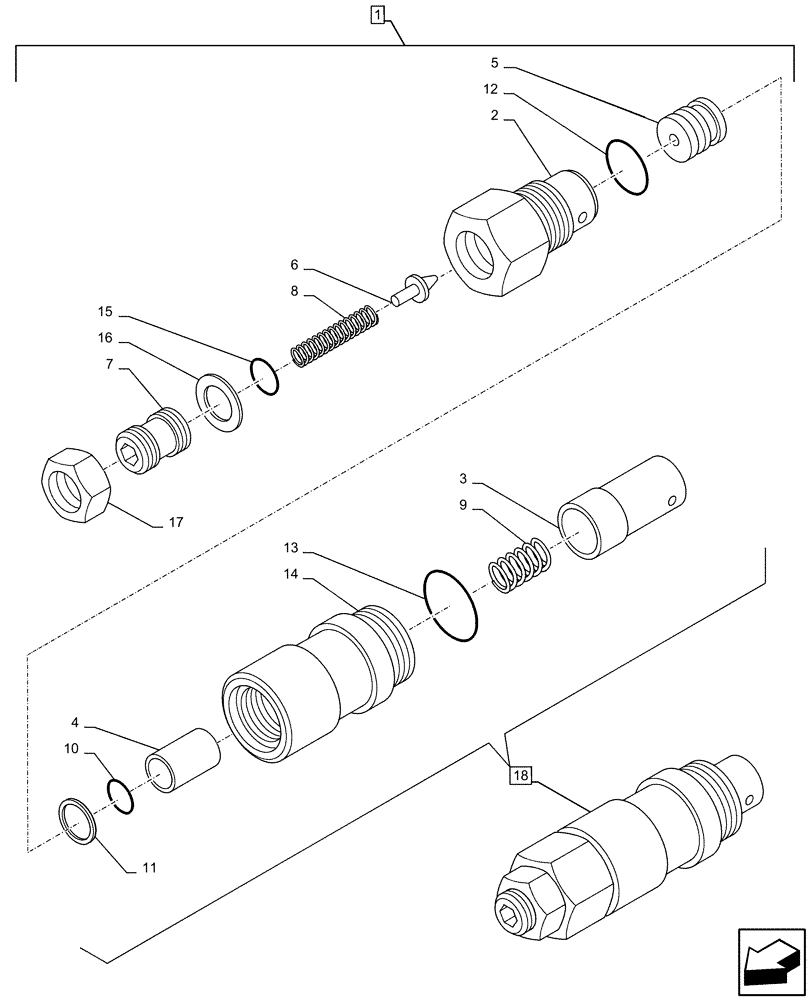

Запчасти Case CX250D LC LR (88.100.35[064]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, PRESSURE RELIEF VALVE, COMPONENTS (88) - ACCESSORIES

1

KG1BP604-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Valve, Incl in 18

1шт.

3

NSS

NOT SOLD SEPARAT

Sleeve, Incl in 18

1шт.

4

NSS

NOT SOLD SEPARAT

Spacer, Incl in 18

1шт.

5

NSS

NOT SOLD SEPARAT

Poppet, Incl in 18

1шт.

6

NSS

NOT SOLD SEPARAT

Poppet, Incl in 18

1шт.

7

NSS

NOT SOLD SEPARAT

Adjuster, Incl in 18

1шт.

8

NSS

NOT SOLD SEPARAT

Spring, Incl in 18

1шт.

9

NSS

NOT SOLD SEPARAT

Spring, Incl in 18

1шт.

10

154463A1

O-RING

1шт.

11

164905A1

BACK-UP RING

1шт.

12

159976A1

O-RING

1шт.

13

155223A1

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

Body, Incl in 18

1шт.

15

159977A1

O-RING

1шт.

16

159979A1

BACK-UP RING

1шт.

17

NSS

NOT SOLD SEPARAT

Nut, Incl in 18

1шт.

18

155745A1

VALVE PRESSURE RELIE

ASSY, Incl 2 - 17

1шт.
