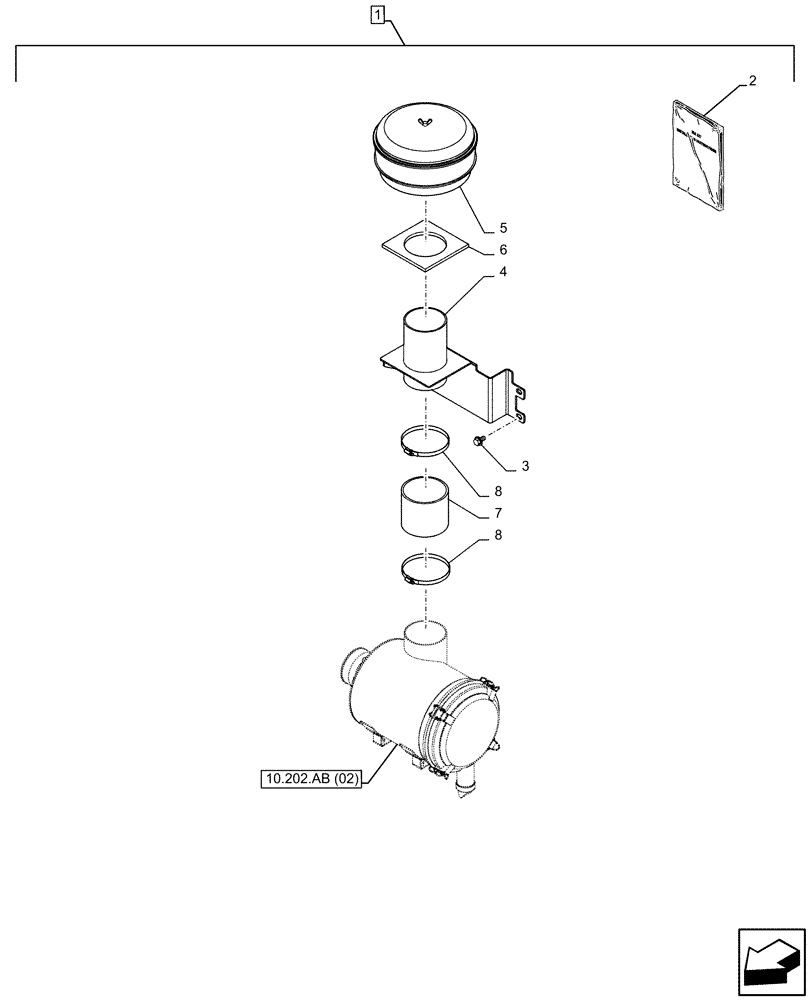

Запчасти Case CX250D LC LR (88.100.10[04]) - DIA KIT, W/ PRE CLEANER, AIR CLEANER (88) - ACCESSORIES

1

KG1BP541-00

CONSTRUCTION DIA

Pre-Cleaner, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47789079

INSTRUCTION

1шт.

2

47789112

INSTRUCTION

1шт.

3

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

4

KBH15650

BRACKET

1шт.

5

KHH13120

FILTER ASSY

1шт.

6

KRH12050

SEAL

1шт.

7

KRH12040

LARGE HOSE

1шт.

8

KHJ33130

HOSE CLAMP

2шт.
