(84.910.AD[01]) - VAR - 461029 - BOOM, BUSHING

Запчасти Case CX250D LC LR (84.910.AD[01]) - VAR - 461029 - BOOM, BUSHING (84) - BOOMS, DIPPERS & BUCKETS

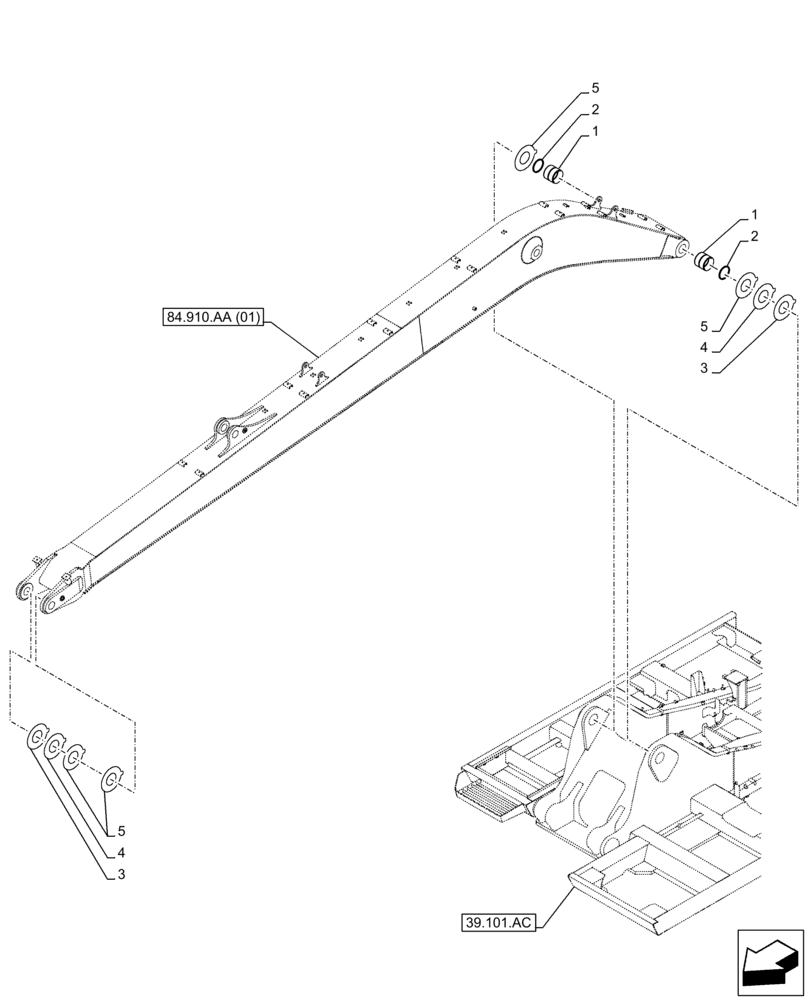

Схема запчастей Case CX250D LC LR - (84.910.AD[01]) - VAR - 461029 - BOOM, BUSHING (84) - BOOMS, DIPPERS & BUCKETS
1
2
1
5
4
5
3
84.910.aa (01)
39.101.ac
4
2
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBV1360

SELF LUB RING

ASSY

2шт.

Parts are included in Boom Assembly PN KBV37130

1шт.

2

159649A1

SEAL,100mm ID x 115mm OD x 5mm Thk

2шт.

Parts are included in Boom Assembly PN KBV37130

1шт.

3

KBV24250

SHIM

2шт.

4

KBV11200

SHIM,2mm Thk

2шт.

5

KBV11190

SHIM,1mm Thk

4шт.

Выбрано товаров: 7
