(84.100.AM[02]) - VAR - 481238 - BUCKET CYLINDER, BUSHING

Запчасти Case CX250D LC LR (84.100.AM[02]) - VAR - 481238 - BUCKET CYLINDER, BUSHING (84) - BOOMS, DIPPERS & BUCKETS

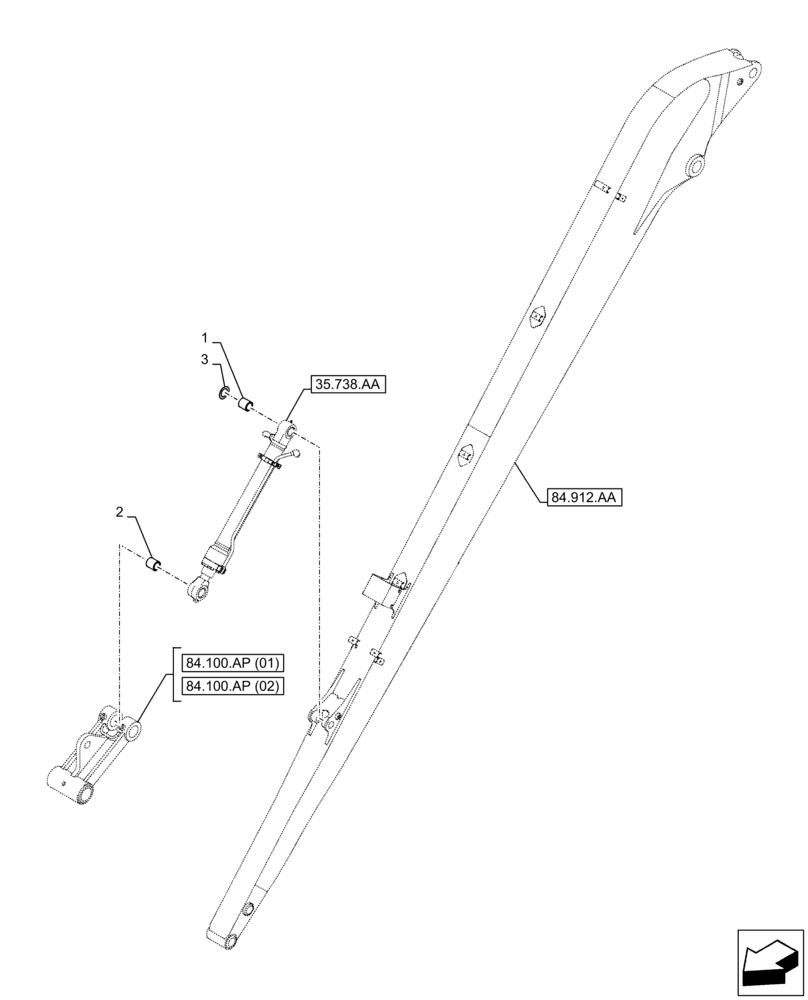

Схема запчастей Case CX250D LC LR - (84.100.AM[02]) - VAR - 481238 - BUCKET CYLINDER, BUSHING (84) - BOOMS, DIPPERS & BUCKETS
2
84.100.ap (01)
1
35.738.aa
3
84.100.ap (02)
84.912.aa
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNV1141

SELF LUB RING

1шт.

Parts are Included in Bucket Cylinder Assembly PN KNV12541

1шт.

2

KNV1139

SELF LUB RING

1шт.

Parts are Included in Bucket Cylinder Assembly PN KNV12541

1шт.

3

160734A1

SHIM

1шт.

Выбрано товаров: 5
