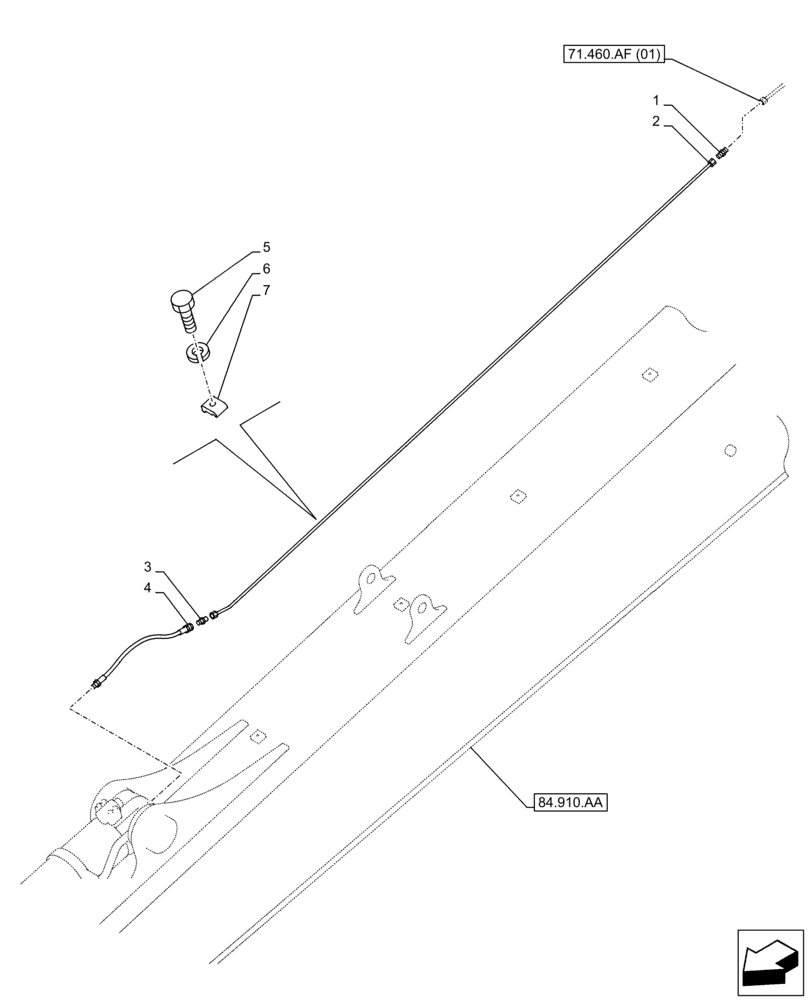

Запчасти Case CX250D LC LR (71.460.AF[02]) - LUBRICATION LINE (71) - LUBRICATION SYSTEM

1

153694A1

UNION

1шт.

2

162783A1

TUBE ASSY.

1шт.

3

152032A1

UNION

1шт.

4

150983A1

HOSE ASSY.

1шт.

5

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

6шт.

6

153081A1

WASHER

6шт.

7

151504A1

CLAMP

6шт.
