(55.530.AD[01]) - VAR - 488037 - REAR VIEW CAMERA, WIRE HARNESS

Запчасти Case CX250D LC LR (55.530.AD[01]) - VAR - 488037 - REAR VIEW CAMERA, WIRE HARNESS (55) - ELECTRICAL SYSTEMS

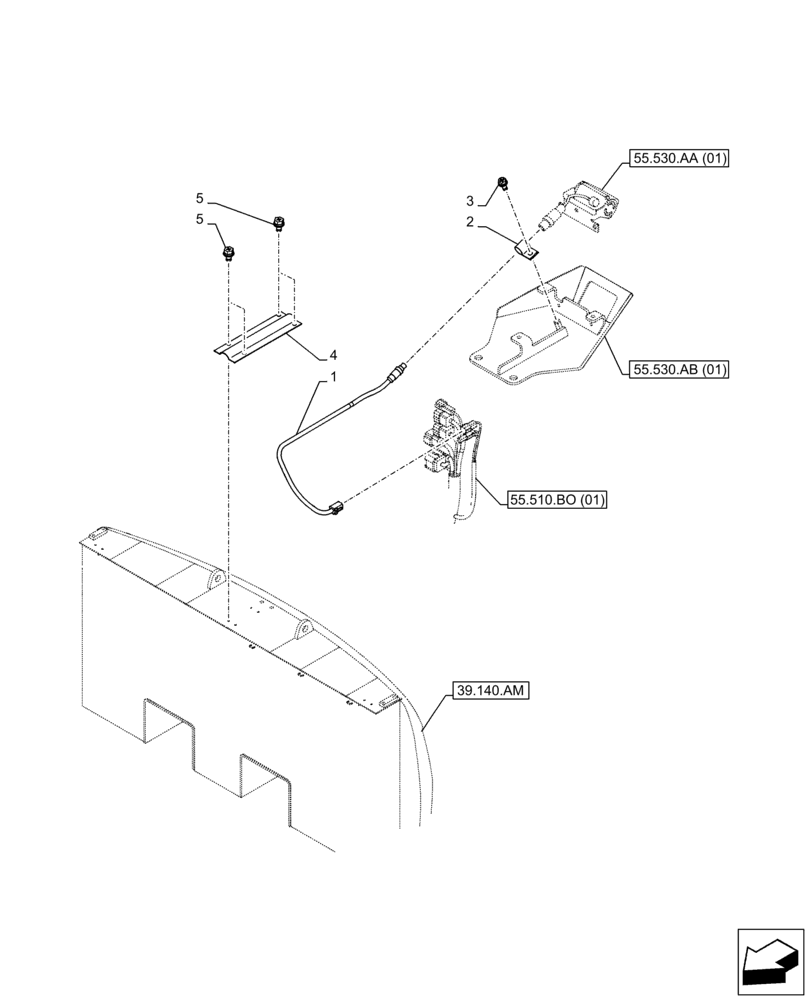

Схема запчастей Case CX250D LC LR - (55.530.AD[01]) - VAR - 488037 - REAR VIEW CAMERA, WIRE HARNESS (55) - ELECTRICAL SYSTEMS
2
4
55.530.ab (01)
39.140.am
55.530.aa (01)
3
5
5
55.510.bo (01)
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR36120

WIRE HARNESS

Rear Camera, Serial Range: -C0221

1шт.

1

KHR40560

WIRE HARNESS

Rear Camera, Start Serial: D0221

1шт.

2

157806A1

COLLAR

1шт.

3

KHN2132

BOLT,Hex Flg Hd, M6 x 16

1шт.

4

KHR40240

COVER

1шт.

5

KHN2308

SCREW

M8 x 16mm

4шт.
