(55.510.BO[01]) - MAIN, WIRE HARNESS - BSN NGS7M1171

Запчасти Case CX250D LC LR (55.510.BO[01]) - MAIN, WIRE HARNESS - BSN NGS7M1171 (55) - ELECTRICAL SYSTEMS

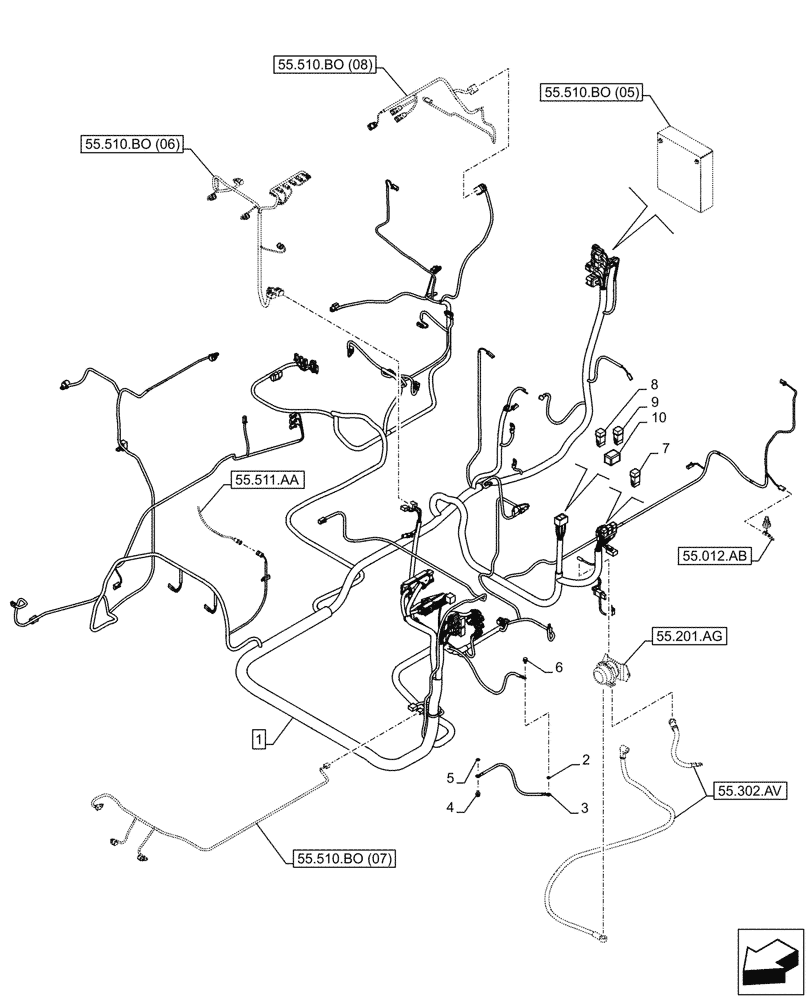

Схема запчастей Case CX250D LC LR - (55.510.BO[01]) - MAIN, WIRE HARNESS - BSN NGS7M1171 (55) - ELECTRICAL SYSTEMS
55.201.ag
8
7
9
5
6
3
1
4
10
2
55.510.bo (05)
55.302.av
55.510.bo (06)
55.510.bo (07)
55.510.bo (08)
55.511.aa
55.012.ab
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRR21800

WIRE HARNESS

ASSY, Incl 7, Serial Range: -C0116

1шт.

1

KRR21802

WIRE HARNESS

ASSY, Incl 7, Start Serial: D0116

1шт.

2

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

3

KHR28730

GROUND CABLE

1шт.

4

167518A1

BOLT

1шт.

5

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

6

KHR2309

BOLT,Spcl

M8 x 30mm

1шт.

7

KHR3850

FUSE

A3, 50A, Start Serial: D0116

2шт.

8

KHR39840

FUSE

B1, 60A, Start Serial: D0116

1шт.

9

KHR39850

FUSE

Large Current, 100A, Start Serial: D0116

1шт.

10

KHR42470

FUSE HOLDER

, Start Serial: D0116

1шт.
