(55.510.BB[05]) - VAR - 461863 - OPTION, HARNESS, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX250D LC LR (55.510.BB[05]) - VAR - 461863 - OPTION, HARNESS, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

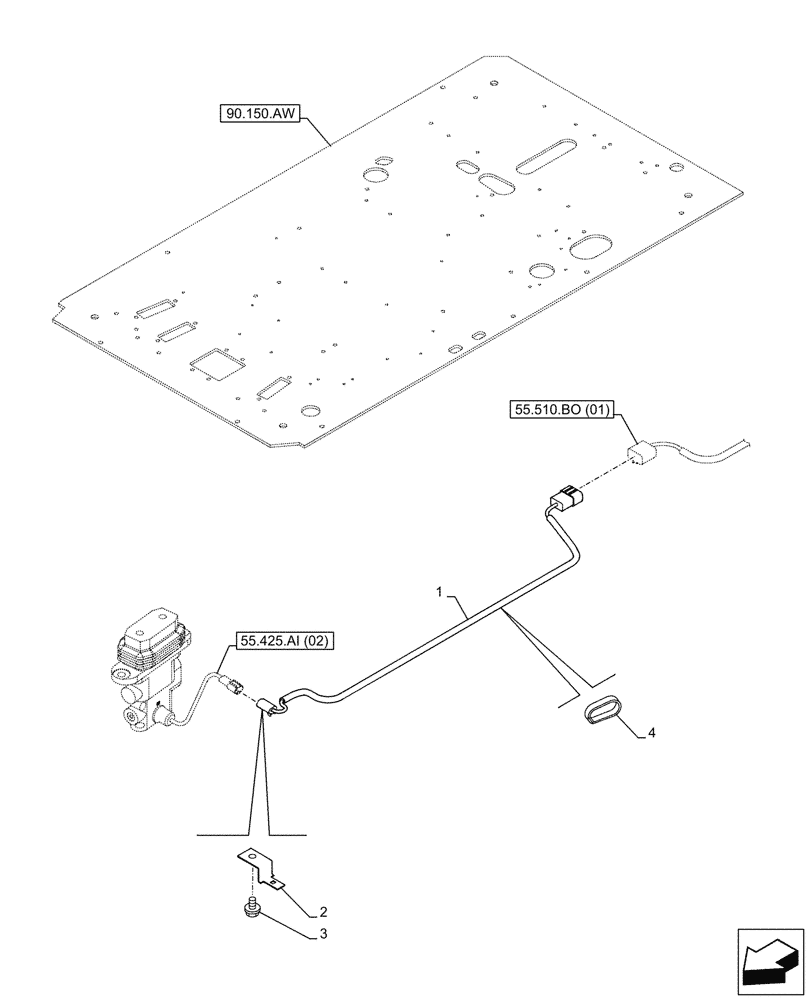

Схема запчастей Case CX250D LC LR - (55.510.BB[05]) - VAR - 461863 - OPTION, HARNESS, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
90.150.aw
3
1
2
55.510.bo (01)
55.425.ai (02)
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR40390

WIRE HARNESS

1шт.

2

165405A1

CLIP

1шт.

3

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

4

150496A1

MOUNTING CLIP

250mm

1шт.

Выбрано товаров: 4
