(55.425.AT[02]) - VAR - 461872 - PRESSURE SENSOR, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX250D LC LR (55.425.AT[02]) - VAR - 461872 - PRESSURE SENSOR, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

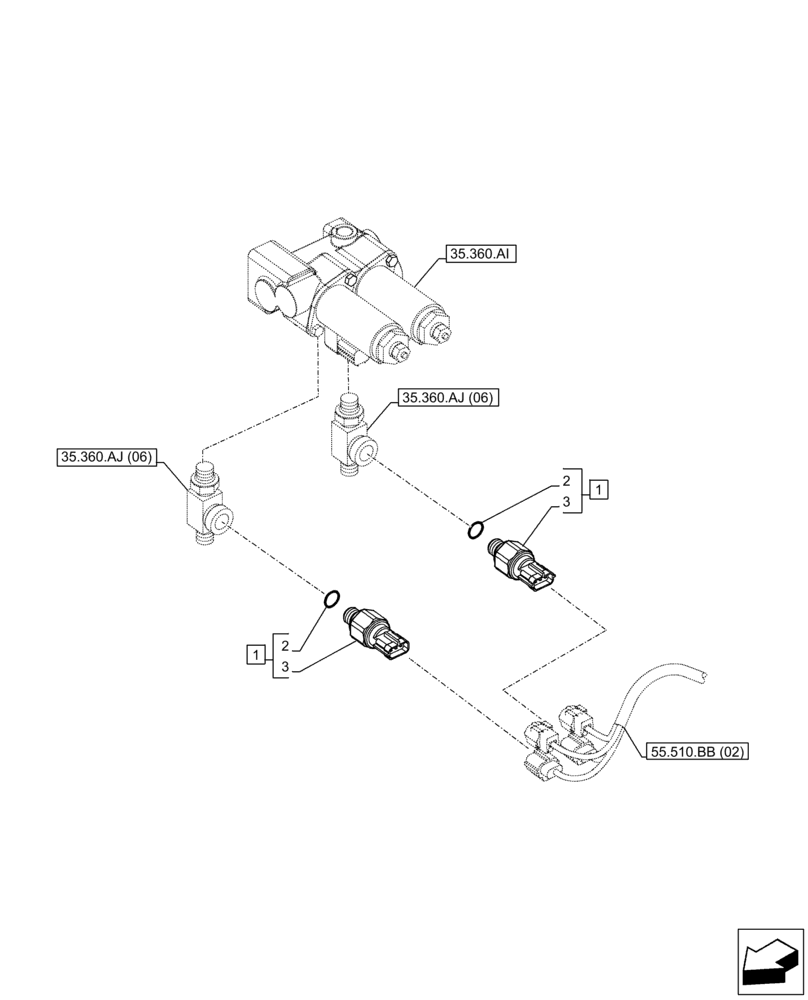

Схема запчастей Case CX250D LC LR - (55.425.AT[02]) - VAR - 461872 - PRESSURE SENSOR, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
3
2
35.360.ai
1
35.360.aj (06)
2
55.510.bb (02)
3
1
35.360.aj (06)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR26940

SENSOR

ASSY, Pressure Hammer Circuit, Incl 2 (Qty 1), 3 (Qty 1)

2шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

3

NSS

NOT SOLD SEPARAT

Sensor, Incl in 1

2шт.

Выбрано товаров: 3
