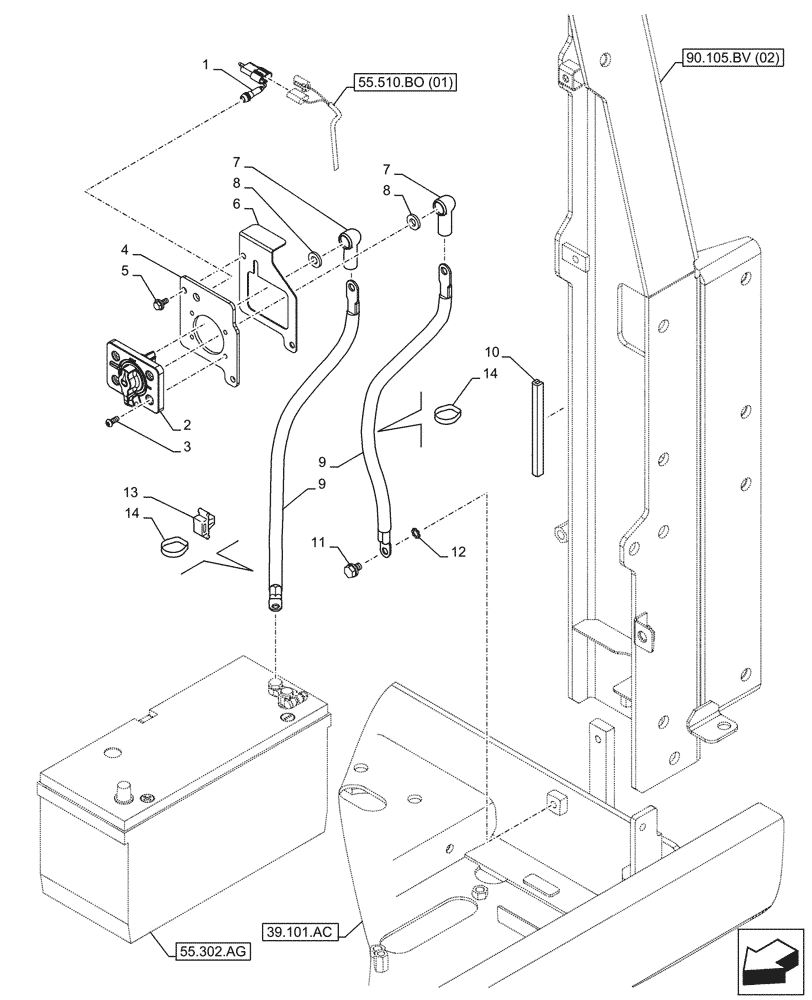

Запчасти Case CX250D LC LR (55.302.AI[02]) - BATTERY ISOLATOR, SWITCH - ASN NGS7M1172 (55) - ELECTRICAL SYSTEMS

1

KHR47290

WORK LAMP

1шт.

2

KHR34680

ROTARY SWITCH

, Serial Range: -C0154

1шт.

2

KHR34681

ROTARY SWITCH

, Start Serial: D0154

1шт.

3

KHR37580

BOLT

4шт.

4

KRR21920

BRACKET

, Serial Range: -C0153

1шт.

4

KRR21921

BRACKET

, Start Serial: D0153

1шт.

5

166345A1

BOLT

, Serial Range: -C0153

2шт.

5

166350A1

BOLT

, Start Serial: D0153

2шт.

6

KRR23740

BRACKET

, Start Serial: D0153

1шт.

7

KHR39760

CAP

2шт.

8

150409A1

WASHER

, Serial Range: -C0154

4шт.

8

KHR49150

SPACER

, Start Serial: D0154

2шт.

9

KHR36520

POS BATTERY CABLE

2шт.

10

HKJ0042

SEAL PROTECTION

1шт.

11

166346A1

BOLT,Sems, M10

1шт.

12

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

13

KHR10220

MOUNTING CLIP

1шт.

14

150496A1

MOUNTING CLIP

5шт.
