(55.302.AI[01]) - BATTERY ISOLATOR, SWITCH - BSN NGS7M1171

Запчасти Case CX250D LC LR (55.302.AI[01]) - BATTERY ISOLATOR, SWITCH - BSN NGS7M1171 (55) - ELECTRICAL SYSTEMS

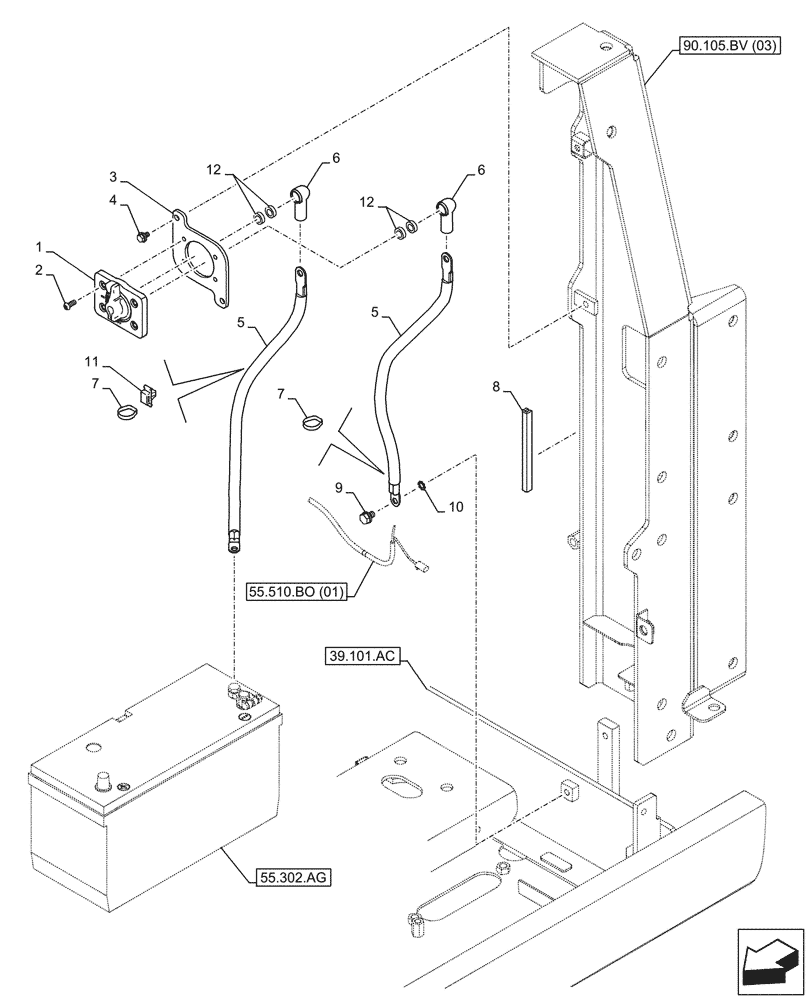

Схема запчастей Case CX250D LC LR - (55.302.AI[01]) - BATTERY ISOLATOR, SWITCH - BSN NGS7M1171 (55) - ELECTRICAL SYSTEMS
39.101.ac
4
7
12
6
8
7
5
11
9
6
1
3
10
2
5
55.510.bo (01)
12
55.302.ag
90.105.bv (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR34680

ROTARY SWITCH

1шт.

2

KHR37580

BOLT

M8 x 20mm

4шт.

3

KRR21920

BRACKET

1шт.

4

166345A1

BOLT

M8 x 16mm

2шт.

5

KHR36520

POS BATTERY CABLE

2шт.

6

KHR39760

CAP

2шт.

7

150496A1

MOUNTING CLIP

1шт.

8

HKJ0042

SEAL PROTECTION

200mm

1шт.

9

166346A1

BOLT,Sems, M10

1шт.

10

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

11

KHR10220

MOUNTING CLIP

1шт.

12

150409A1

WASHER

4шт.
