(48.138.AD[01]) - TRACK ROLLER, SUPPORT

Запчасти Case CX250D LC LR (48.138.AD[01]) - TRACK ROLLER, SUPPORT (48) - TRACKS & TRACK SUSPENSION

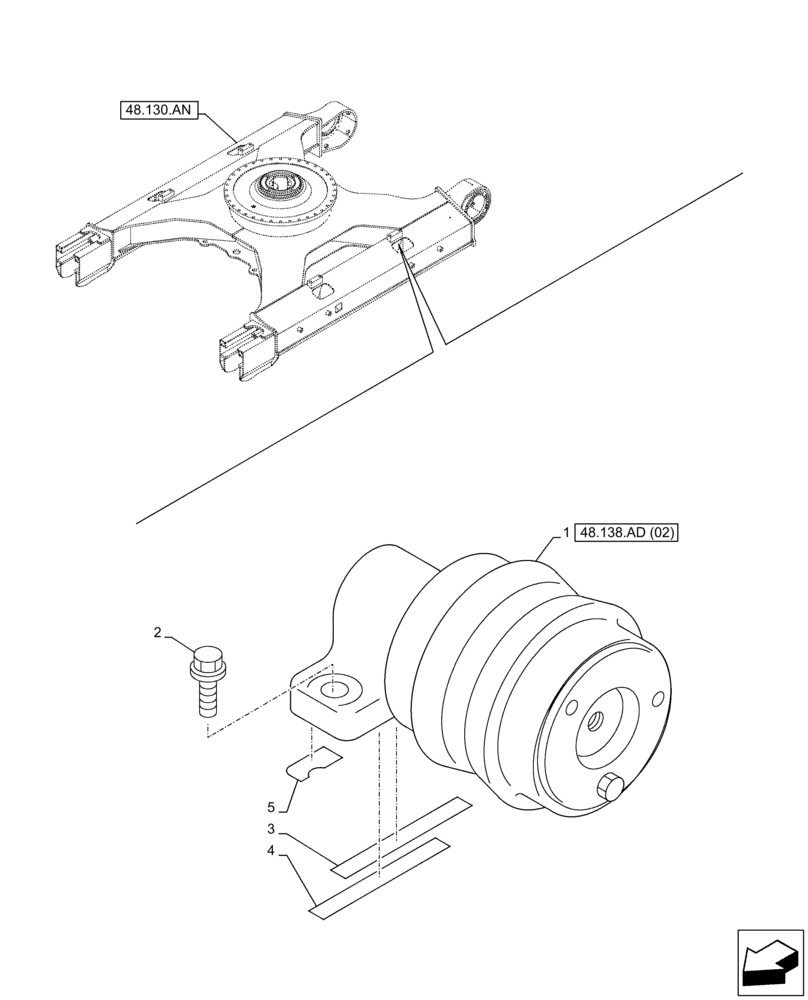

Схема запчастей Case CX250D LC LR - (48.138.AD[01]) - TRACK ROLLER, SUPPORT (48) - TRACKS & TRACK SUSPENSION
48.130.an
2
48.138.ad (02)
4
3
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRA13750

TRACK ROLLER

ASSY, LH/RH, Start Serial: D0097

4шт.

2

166353A1

BOLT,Flng, M20 x 65mm, Cl 10.9

, Start Serial: D0097

8шт.

3

150009A1

SHIM

1шт.

CX250D LC MEA, CX250D LR MEA Models Only

1шт.

4

162197A1

SHIM

1шт.

CX250D LC MEA, CX250D LR MEA Models Only

1шт.

5

KRA17190

SHIM

, Start Serial: D0097

8шт.

Выбрано товаров: 7
