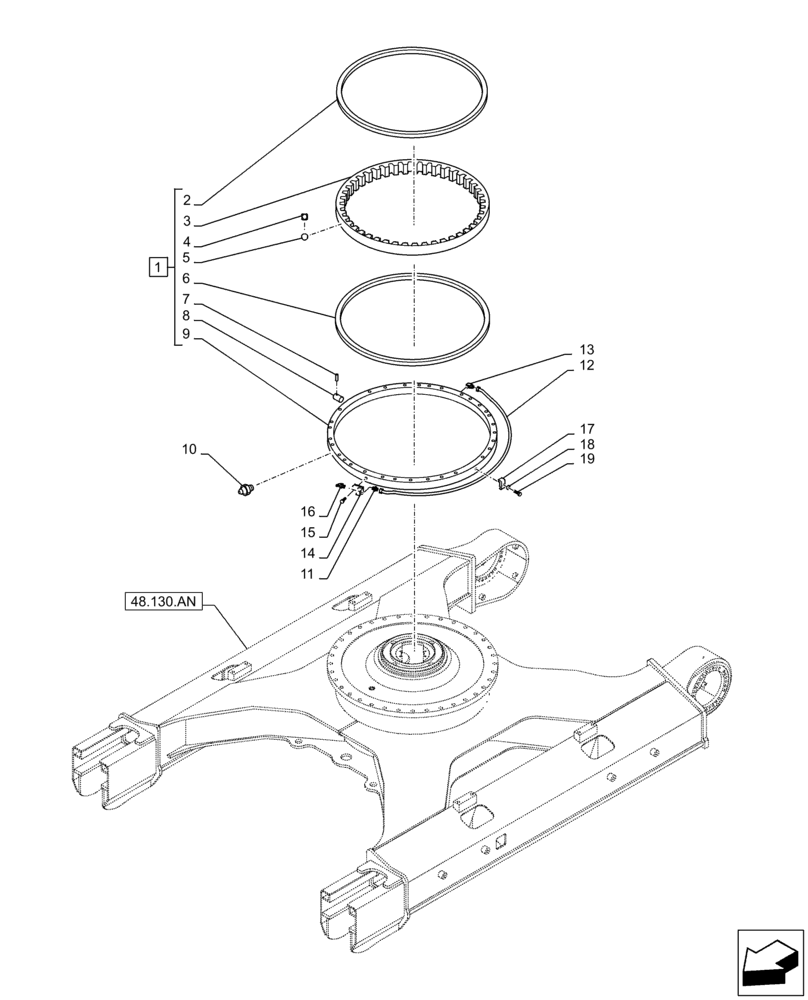

Запчасти Case CX250D LC LR (39.103.AD) - SLEWING RING (39) - FRAMES AND BALLASTING

1

KRB14090

RING GEAR

ASSY, Incl 2 - 9, Serial Range: -C0009

1шт.

1

KBB18580

SLEWING RING

ASSY, Incl 2 - 9, Start Serial: D0009

1шт.

2

KBB0645

SEALING RING

1шт.

3

NSS

NOT SOLD SEPARAT

Swing Bearing, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Spacer, Incl in 1

105шт.

5

159695A1

BALL

, Serial Range: -C0009

112шт.

5

KBB18510

, Start Serial: D0009

112шт.

6

KBB0646

SEALING RING

1шт.

7

KBB0763

DOWEL

1шт.

8

KRB1276

STOP LOCK

1шт.

9

NSS

NOT SOLD SEPARAT

Swing Bearing, Incl in 1

1шт.

10

153630A1

LUBE NIPPLE

1шт.

11

152599A1

MULTIPOLE CONNECTOR

1шт.

12

KBB10490

HYD TUBE,6 mm ID x 8 mm OD

1шт.

13

152627A1

ELBOW

1шт.

14

KRB10730

MANIFOLD VALVE

1шт.

15

166345A1

BOLT

M8 x 16mm

1шт.

16

153631A1

LUBE NIPPLE,1/8"-27 NPT

1шт.

17

151504A1

CLAMP

1шт.

18

153081A1

WASHER

M8

1шт.

19

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.
