(35.738.AE[04]) - VAR - 481238 - BUCKET CYLINDER, LINES (ARM L=8M)

Запчасти Case CX250D LC LR (35.738.AE[04]) - VAR - 481238 - BUCKET CYLINDER, LINES (ARM L=8M) (35) - HYDRAULIC SYSTEMS

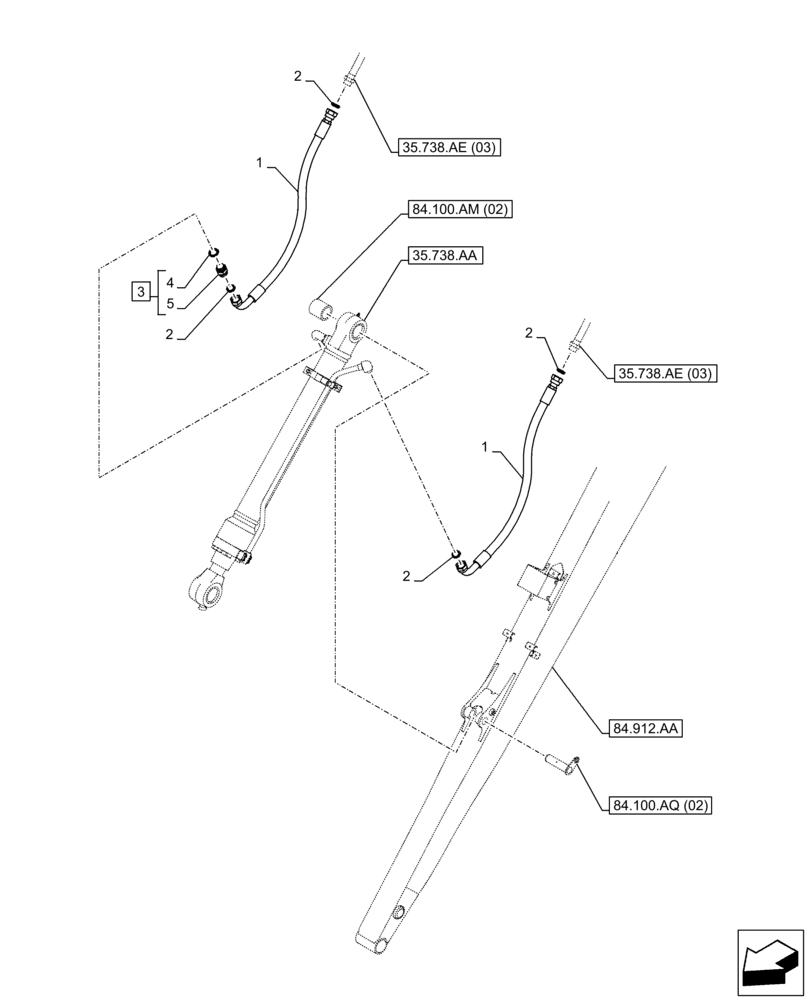

Схема запчастей Case CX250D LC LR - (35.738.AE[04]) - VAR - 481238 - BUCKET CYLINDER, LINES (ARM L=8M) (35) - HYDRAULIC SYSTEMS
84.912.aa
35.738.ae (03)
2
1
35.738.aa
35.738.ae (03)
5
2
84.100.am (02)
3
2
4
2
1
84.100.aq (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KLV15030

HYDRAULIC HOSE

2шт.

2

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

3

KHJ1348

ADAPTER

ASSY, Incl 4, 5

1шт.

4

150542A1

O-RING

1шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

1шт.

Выбрано товаров: 5
