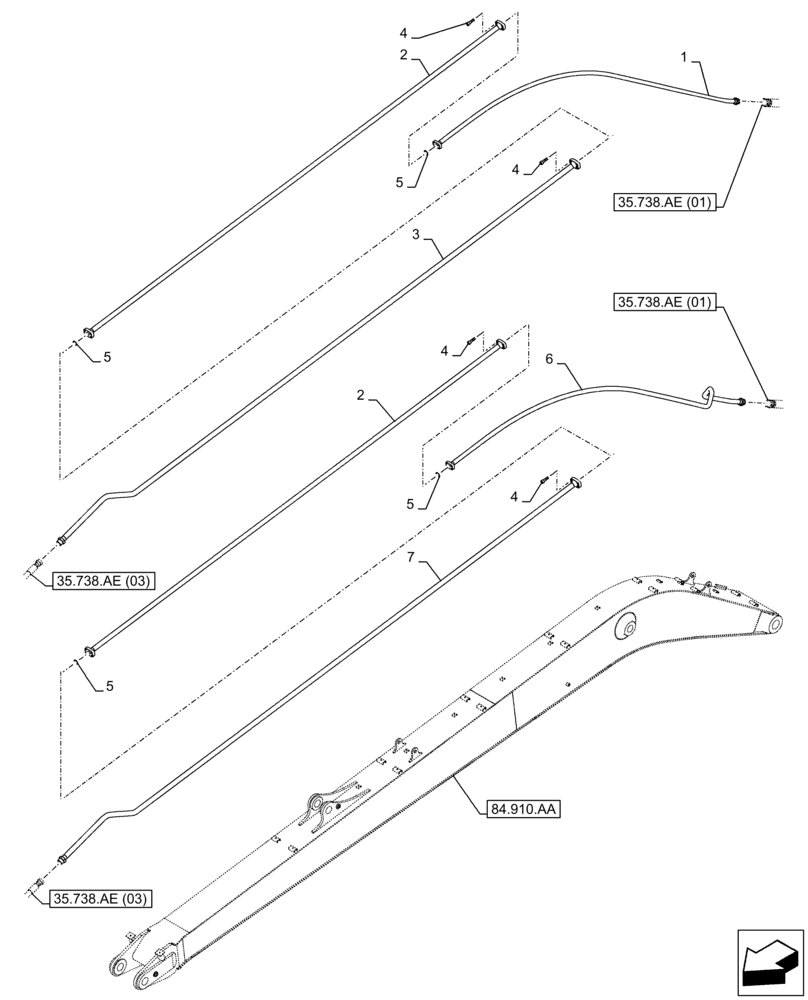

Запчасти Case CX250D LC LR (35.738.AE[02]) - VAR - 481238 - BUCKET CYLINDER, LINES (ARM L=8M) (35) - HYDRAULIC SYSTEMS

1

KBV26730

PIPE

1шт.

2

162853A1

HYD TUBE,27.2 mm OD

2шт.

3

KBV1604

HYD TUBE,20.8 mm ID x 27.2 mm OD

, Start Serial: D0233

1шт.

4

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

16шт.

5

151099A1

O-RING

4шт.

6

KBV26421

PIPE

1шт.

7

KBV1605

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.
