(35.737.AY[01]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE

Запчасти Case CX250D LC LR (35.737.AY[01]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE (35) - HYDRAULIC SYSTEMS

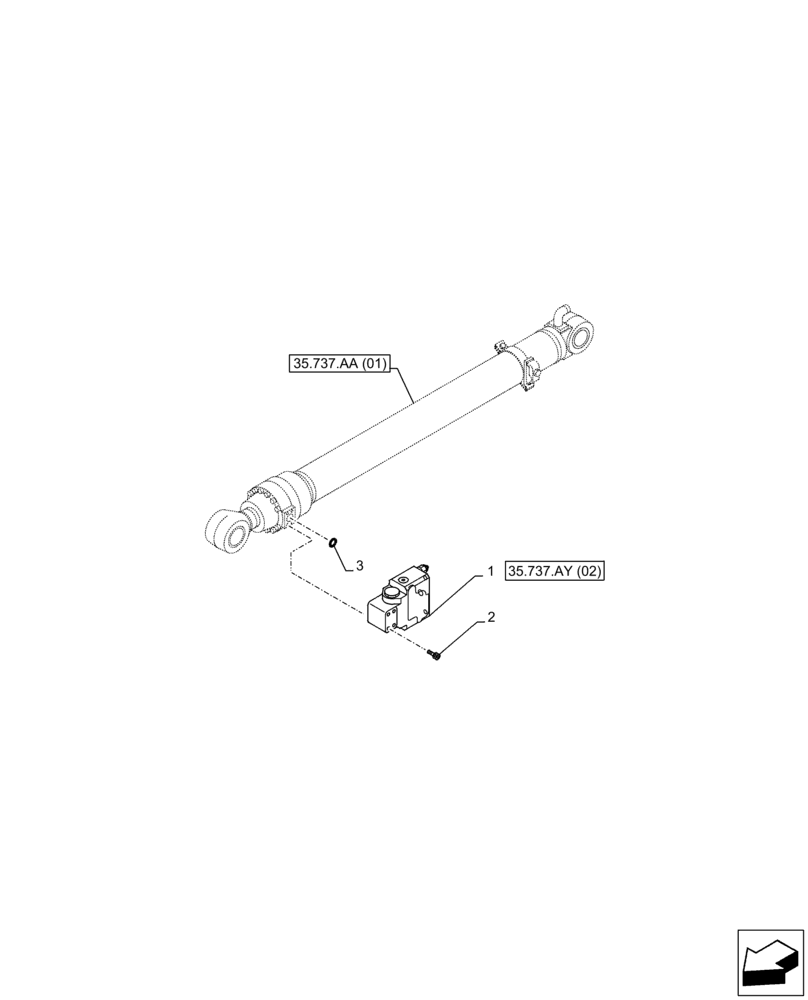

Схема запчастей Case CX250D LC LR - (35.737.AY[01]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE (35) - HYDRAULIC SYSTEMS
35.737.ay (02)
35.737.aa (01)
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRV11120

VALVE SECTION

ASSY, Serial Range: -C0234

1шт.

1

KSV17260

SAFETY VALVE

ASSY, Start Serial: D0234

1шт.

2

862-12070

HEX SOC SCREW,M12 x 70mm, Cl 12.9

4шт.

3

162246A1

O-RING

1шт.
