(35.736.AK[01]) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINES

Запчасти Case CX250D LC LR (35.736.AK[01]) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS

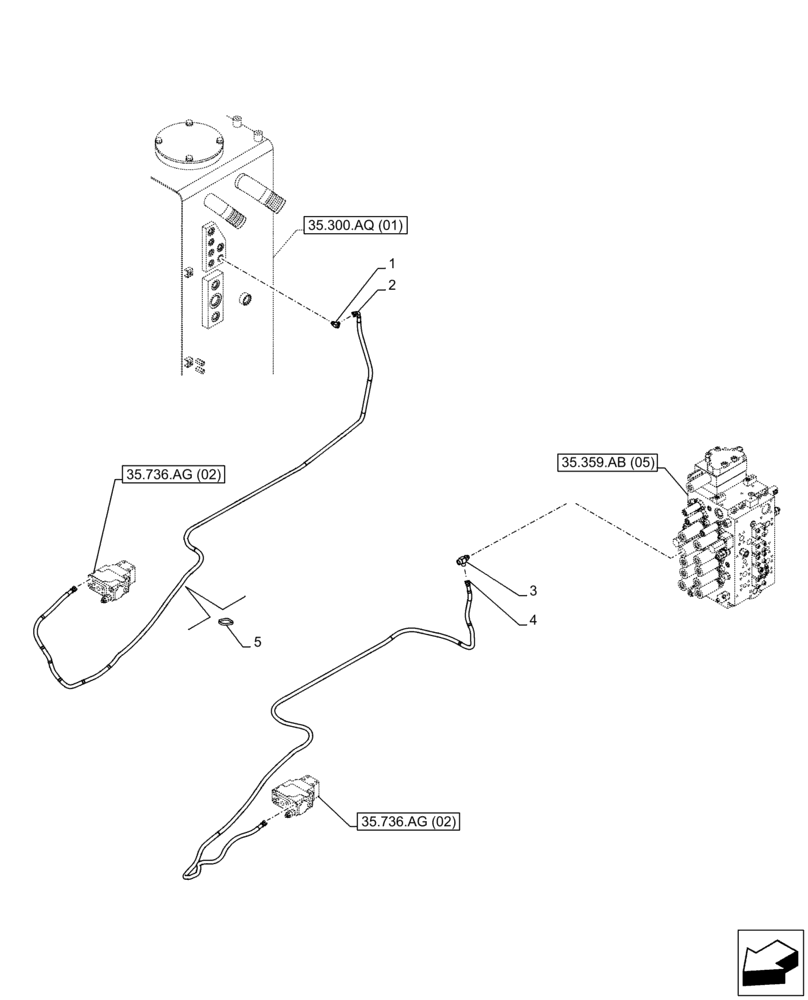

Схема запчастей Case CX250D LC LR - (35.736.AK[01]) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS
35.300.aq (01)
35.736.ag (02)
5
2
1
4
3
35.736.ag (02)
35.359.ab (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ11560

TEE

1шт.

2

KHJ29520

HYDRAULIC HOSE

3900mm

1шт.

3

KHJ31880

TEE

1шт.

4

KHJ29510

HYDRAULIC HOSE

4000mm

1шт.

5

150071A1

MOUNTING CLIP

16шт.

Выбрано товаров: 5
