(35.360.AM[03]) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=8.0M)

Запчасти Case CX250D LC LR (35.360.AM[03]) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=8.0M) (35) - HYDRAULIC SYSTEMS

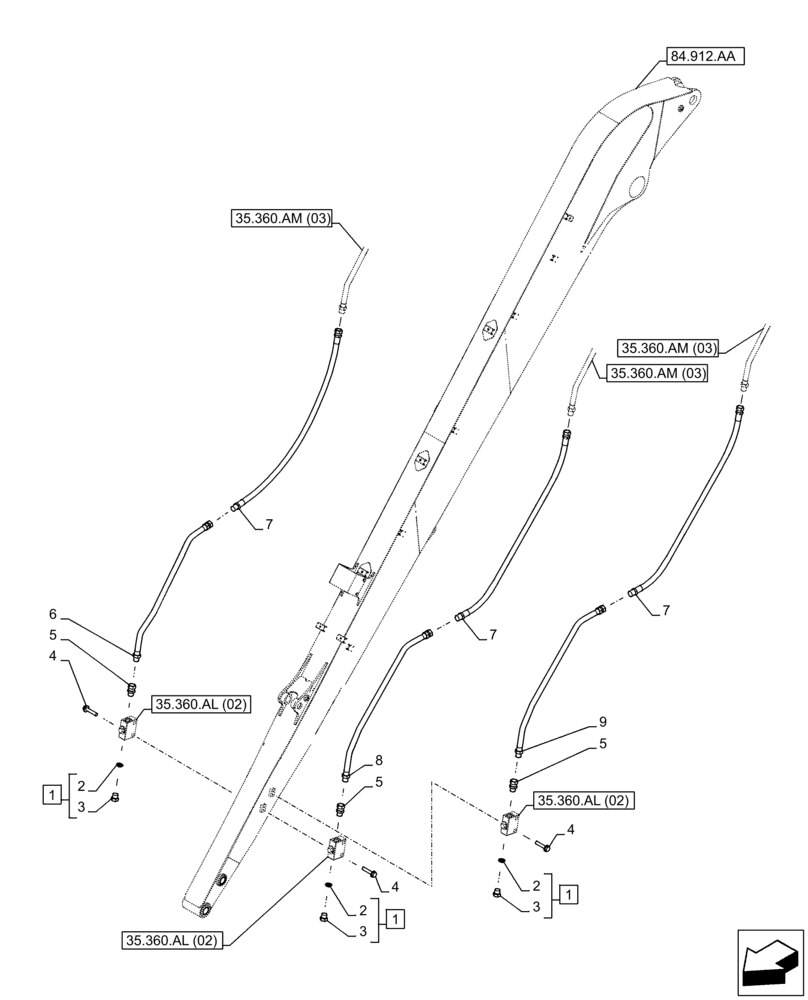

Схема запчастей Case CX250D LC LR - (35.360.AM[03]) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=8.0M) (35) - HYDRAULIC SYSTEMS
5
35.360.am (03)
9
35.360.am (03)
2
4
7
8
7
4
6
84.912.aa
4
1
3
5
3
1
5
3
35.360.am (03)
35.360.al (02)
1
2
35.360.al (02)
35.360.al (02)
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

159085A1

PLUG

ASSY, Incl 2, 3

3шт.

2

150539A1

O-RING

3шт.

3

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

4

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

6шт.

5

KHJ1939

FITTING

3шт.

6

KBV37970

PIPE

1шт.

7

KRV43980

HYDRAULIC HOSE

3шт.

8

KBV37950

PIPE

1шт.

9

KBV37940

PIPE

1шт.

Выбрано товаров: 9
