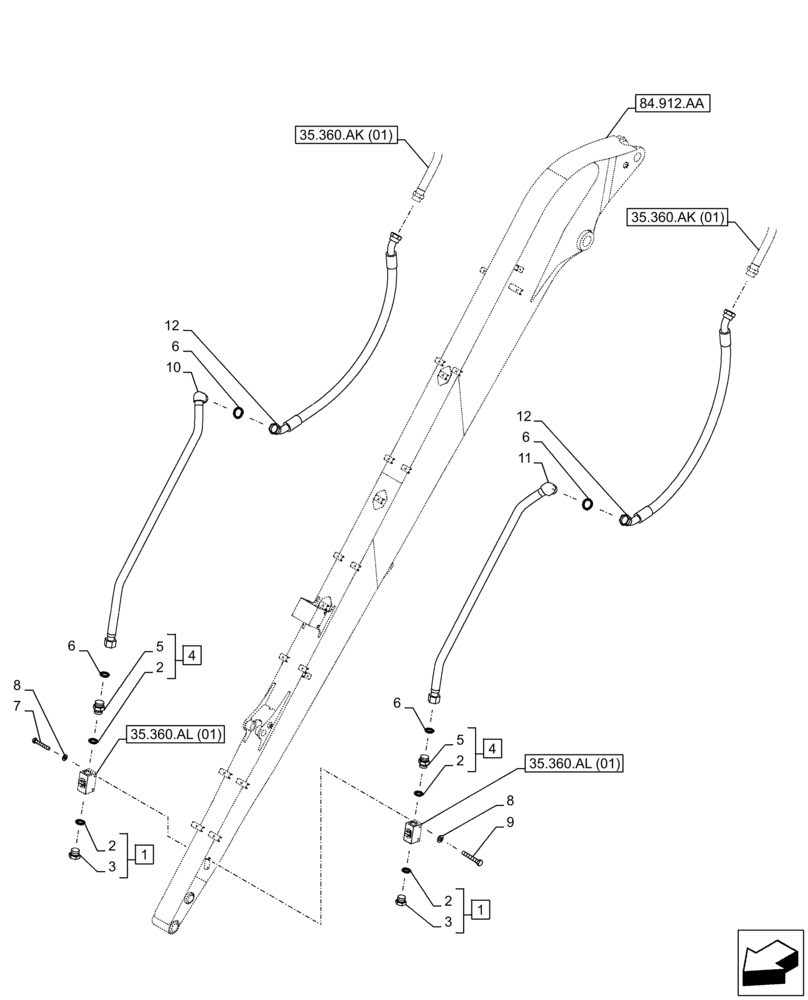

Запчасти Case CX250D LC LR (35.360.AK[02]) - VAR - 461872 - ARM, LINE, HAMMER, SHEARS, AUXILIARY CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

162659A1

PLUG

ASSY, Incl 2, 3

2шт.

2

152211A1

O-RING

4шт.

3

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

4

KHJ1349

ADAPTER

ASSY, Incl 2, 5

2шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

6

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

7

862-12080

HEX SOC SCREW,M12 x 80mm, Cl 12.9

2шт.

8

150811A1

WASHER

4шт.

9

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

2шт.

10

KBV17050

HYD TUBE

1шт.

11

KBV17040

HYD TUBE

1шт.

12

KRV27950

HYDRAULIC HOSE

2шт.
