(35.360.AF[01]) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX250D LC LR (35.360.AF[01]) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

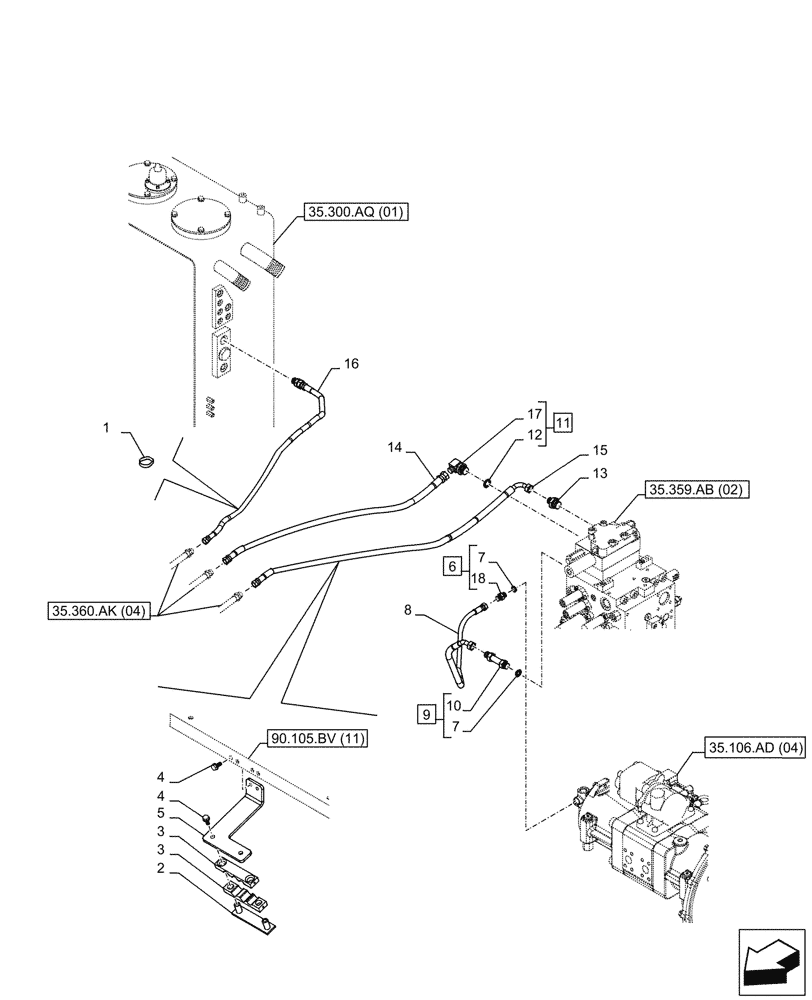

Схема запчастей Case CX250D LC LR - (35.360.AF[01]) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
90.105.bv (11)
17
16
15
8
18
6
13
2
4
7
7
3
14
10
5
3
1
4
9
35.300.aq (01)
11
12
35.359.ab (02)
35.106.ad (04)
35.360.ak (04)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

150496A1

MOUNTING CLIP

4шт.

2

KRJ11590

SUPPORT

1шт.

3

KRJ11580

HOSE CLIP

2шт.

4

166052A1

BOLT

4шт.

5

KBJ19730

BRACKET

1шт.

6

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, Incl 7 (Qty 1), 18

1шт.

7

154487A1

O-RING

2шт.

8

KBJ22790

HYDRAULIC HOSE

1шт.

9

KAJ2432

ADAPTER

ASSY, Incl 7 (Qty 1), 10

1шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.

11

157936A1

ELBOW

ASSY, Incl 17, 12

1шт.

12

154503A1

O-RING

1шт.

13

168988A1

ADAPTER

1шт.

14

KBJ12420

HYDRAULIC HOSE,12.70 mm ID x 1430.00 mm

1шт.

15

KBJ12440

HYDRAULIC HOSE

1шт.

16

KBJ26480

HYDRAULIC HOSE

1шт.

17

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 11

1шт.

18

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.
