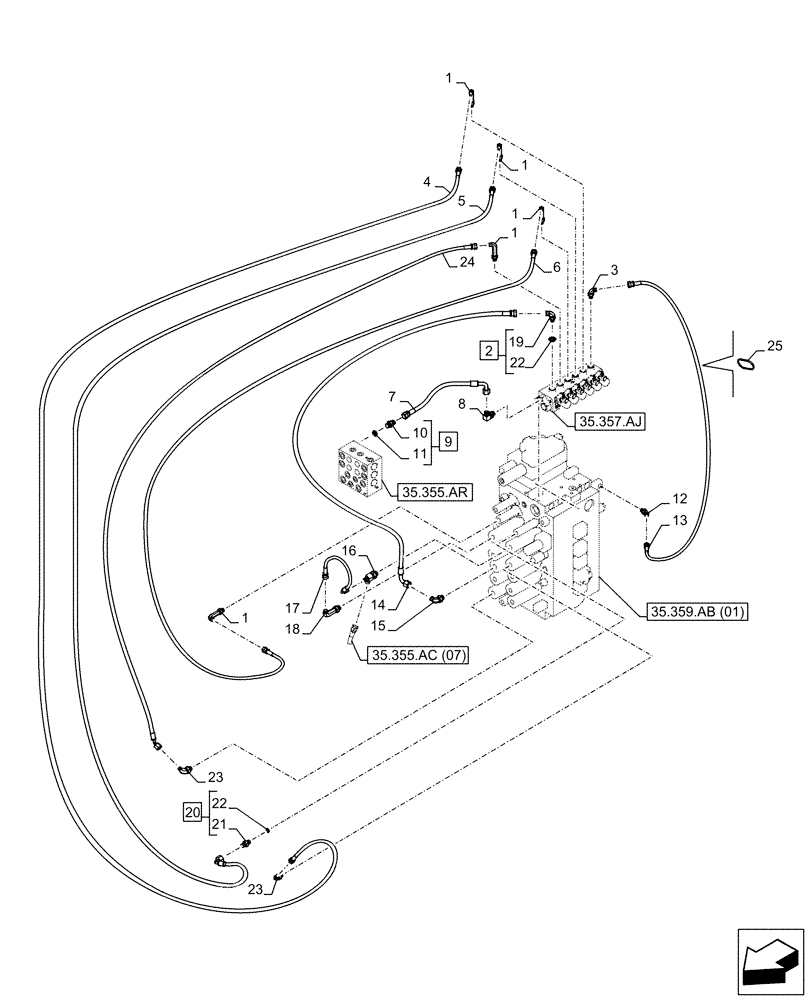

Запчасти Case CX250D LC LR (35.357.AO[02]) - STD + VAR - 461558 - MAIN, SOLENOID VALVE, PRESSURE PIPE (35) - HYDRAULIC SYSTEMS

1

KHJ28810

ELBOW

90° Fitting, G1/4 x G1, Start Serial: D0080

5шт.

2

KHJ28710

ELBOW

ASSY, G1/4 x G3/8, Incl 19, 22, Start Serial: D0080

1шт.

3

KHJ28580

ELBOW

G1/4 x G1/4, Start Serial: D0080

1шт.

4

KHJ2047

HOSE

650mm

1шт.

5

KHJ2239

HOSE,520.00 mm

1шт.

6

KHJ2394

HOSE ASSY.

1шт.

7

KHJ31950

HOSE

2100mm

1шт.

8

KHJ29610

ELBOW

G3/8 x G3/8, Start Serial: D0080

1шт.

9

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 10, 11, Start Serial: D0080

1шт.

10

NSS

NOT SOLD SEPARAT

Fitting, G3/8 x G3/8, Incl in 9

1шт.

11

150031A1

O-RING,10mm ID x 24mm OD

Fitting, Incl in 9

1шт.

12

KHJ28630

ELBOW

G1/4 x G1/4, Start Serial: D0080

1шт.

13

KHJ2240

HOSE

450mm

1шт.

14

KHJ26370

HOSE

1шт.

15

KHJ28590

ELBOW

G3/8 x G3/8, Start Serial: D0080

1шт.

16

KHJ13900

TEE

G3/8 x G1/4 x G3/8, Start Serial: D0080

1шт.

17

KHJ2342

HOSE

380mm, Start Serial: D0080

1шт.

18

KHJ28880

ELBOW

90° Fitting, G3/8 x G1, Start Serial: D0080

1шт.

19

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 2

1шт.

20

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 21, 22, Start Serial: D0080

1шт.

21

NSS

NOT SOLD SEPARAT

Fitting, Incl in 20

1шт.

22

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

23

KHJ28690

ELBOW

G3/8 x G1/4, Start Serial: D0080

2шт.

24

KHJ14910

HYDRAULIC HOSE,6.35 mm ID x 800.00 mm

6mm ID x 800mm

1шт.

25

KHH0142

BAND

4шт.
