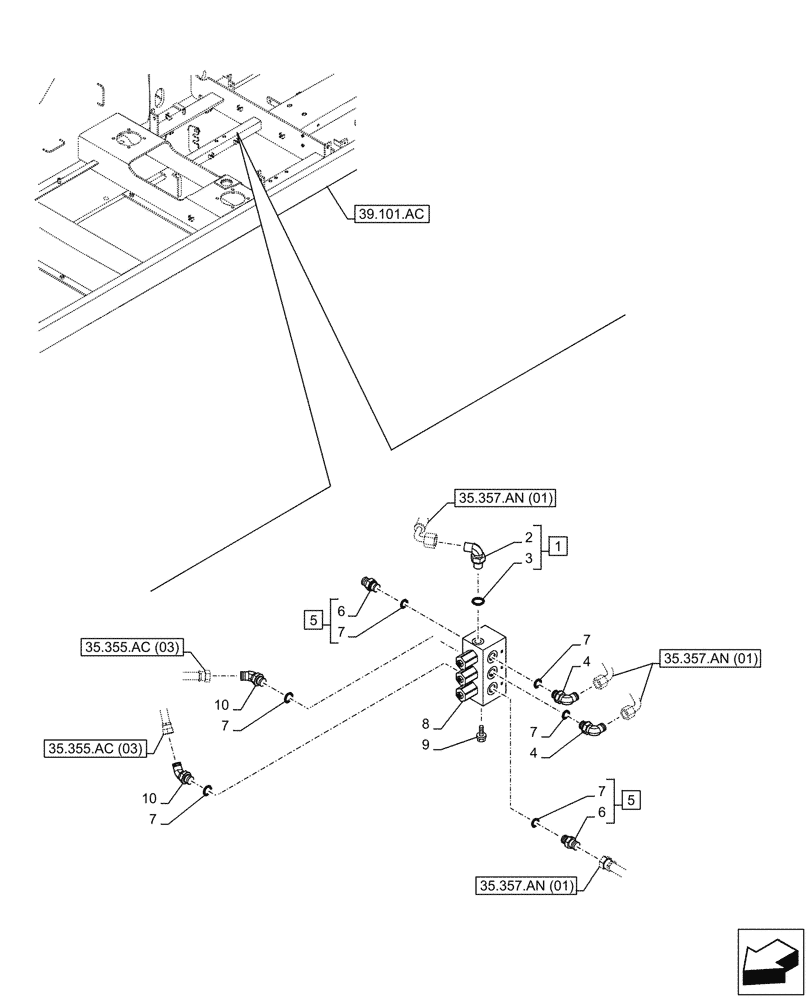

Запчасти Case CX250D LC LR (35.357.AN[02]) - RESTRICTOR VALVE, LINES (35) - HYDRAULIC SYSTEMS

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 2, 3, Serial Range: -C0096

1шт.

1

KHJ28580

ELBOW

ASSY, Incl 2, 3, Start Serial: D0096

1шт.

2

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 1

1шт.

3

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

4

KHJ28590

ELBOW

G3/8 x G3/8

2шт.

5

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 6, 7 (Qty 2), Start Serial: D0096

2шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

2шт.

7

150031A1

O-RING,10mm ID x 24mm OD

, Start Serial: D0096

6шт.

8

KHJ19920

VALVE SECTION

, Serial Range: -C0096

1шт.

8

KRJ19112

VALVE SECTION

, Start Serial: D0096

1шт.

9

166350A1

BOLT

4шт.

10

KHJ28640

ELBOW

G3/8 x G3/8

1шт.

(Q.ty 1) for PN 152127A1; (Q.ty 2) for PN KHJ28580

1шт.
