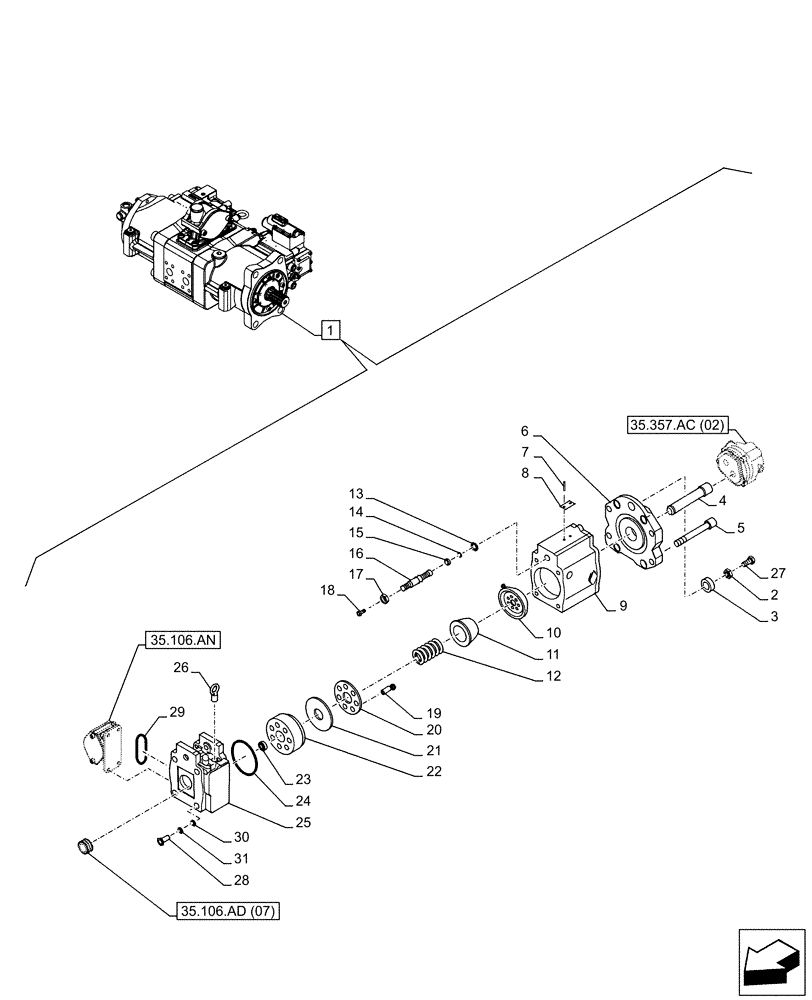

Запчасти Case CX250D LC (35.106.AD[07]) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KBJ18661

HYDRAULIC PUMP

ASSY, Incl 2 - 31, Serial Range: -C0150

1шт.

See also Figure 35.106.AD (05), 35.106.AD (06), 35.106.AD (08), 35.106.AN, 35.357.AC (02)

1шт.

1

KBJ18662

HYDRAULIC PUMP

ASSY, Incl 2 - 31, Start Serial: D0150

1шт.

See also Figure 35.106.AD (05), 35.106.AD (06), 35.106.AD (08), 35.106.AN, 35.357.AC (02)

1шт.

2

164R016VR

NUT

, Serial Range: -C0150

1шт.

2

LA016770

NUT

, Start Serial: D0150

1шт.

3

LW007280

COVER

1шт.

4

LB017110

DRIVE SHAFT

1шт.

5

167078A1

BOLT,M8 x 40mm, Cl 12.9

4шт.

6

LW007270

BODY

1шт.

7

LA00027

RIVET

2шт.

8

NSS

NOT SOLD SEPARAT

Nameplate, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Case, Incl in 1

1шт.

10

LR023300

PLATE

1шт.

11

LB017140

BUSHING

1шт.

12

LG00062

SPRING

18шт.

13

154017A1

BACK-UP RING

, Serial Range: -C0150

2шт.

13

LE025810

RING

, Start Serial: D0150

2шт.

14

LE01176

O-RING

2шт.

15

160115A1

STOP

1шт.

16

LJ022410

PISTON

1шт.

17

162R020VR

NUT

, Serial Range: -C0150

1шт.

17

LA016780

NUT

, Start Serial: D0150

1шт.

18

160296A1

SET SCREW

1шт.

19

LJ022370

PISTON

1шт.

20

LR023320

PLATE

1шт.

21

LR023310

PLATE

1шт.

22

LJ022390

BLOCK

1шт.

23

LB017120

ROLLER

, Serial Range: -C0150

1шт.

23

LB00645

BEARING, ROLLER, CYL

, Start Serial: D0150

1шт.

24

LE024770

O-RING

1шт.

25

LJ022420

BLOCK

1шт.

26

126R010SR

EYEBOLT

, Serial Range: -C0150

1шт.

26

LA016830

EYEBOLT

, Start Serial: D0150

2шт.

27

160295A1

SET SCREW

1шт.

28

LJ022400

VALVE

4шт.

29

LE013510

O-RING

1шт.

30

LE022170

SEAL

10шт.

31

154469A1

O-RING

, Serial Range: -C0150

7шт.

31

LE013410

O-RING

, Start Serial: D0150

7шт.
