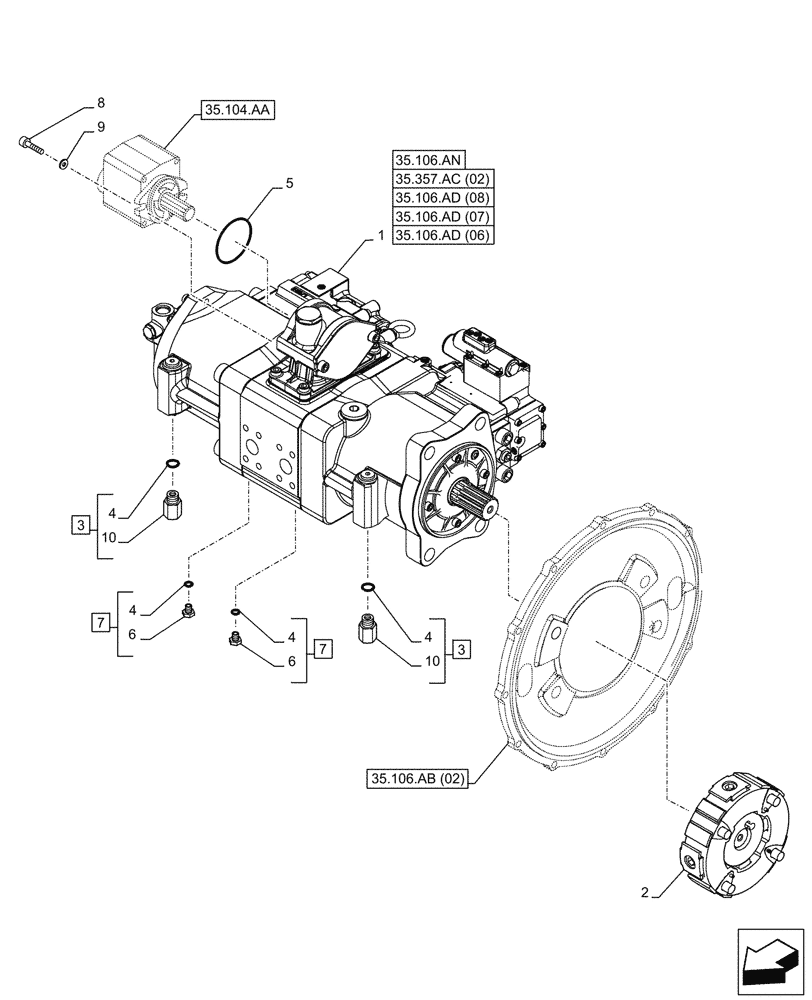

Запчасти Case CX250D LC (35.106.AD[06]) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KBJ18661

HYDRAULIC PUMP

ASSY, Serial Range: -C0148

1шт.

See also Figure 35.106.AD (07), 35.106.AD (08), 35.106.AD (09), 35.357.AC (02), 35.106.AN

1шт.

1

KBJ18662

HYDRAULIC PUMP

ASSY, Start Serial: D0148

1шт.

See also Figure 35.106.AD (07), 35.106.AD (08), 35.106.AD (09), 35.357.AC (02), 35.106.AN

1шт.

2

KRJ29521

HYDRAULIC PUMP

1шт.

3

KHJ18180

STUD

ASSY, Incl 4 (Qty 2), 10, Serial Range: -C0236

2шт.

3

KHJ18190

STUD

ASSY, Incl 4 (Qty 2), 10, Start Serial: D0236

2шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

(Q.ty 2) for PN KHJ18180; (Q.ty 2) for PN 159002A1

1шт.

4

154475A1

O-RING

, Start Serial: D0236

2шт.

5

154697A1

O-RING

1шт.

6

NSS

NOT SOLD SEPARAT

Plug, Incl in 7

2шт.

7

159002A1

PLUG

ASSY, Incl 4 (Qty 2), 6, Start Serial: D0236

2шт.

8

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

2шт.

9

150409A1

WASHER

2шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

2шт.
