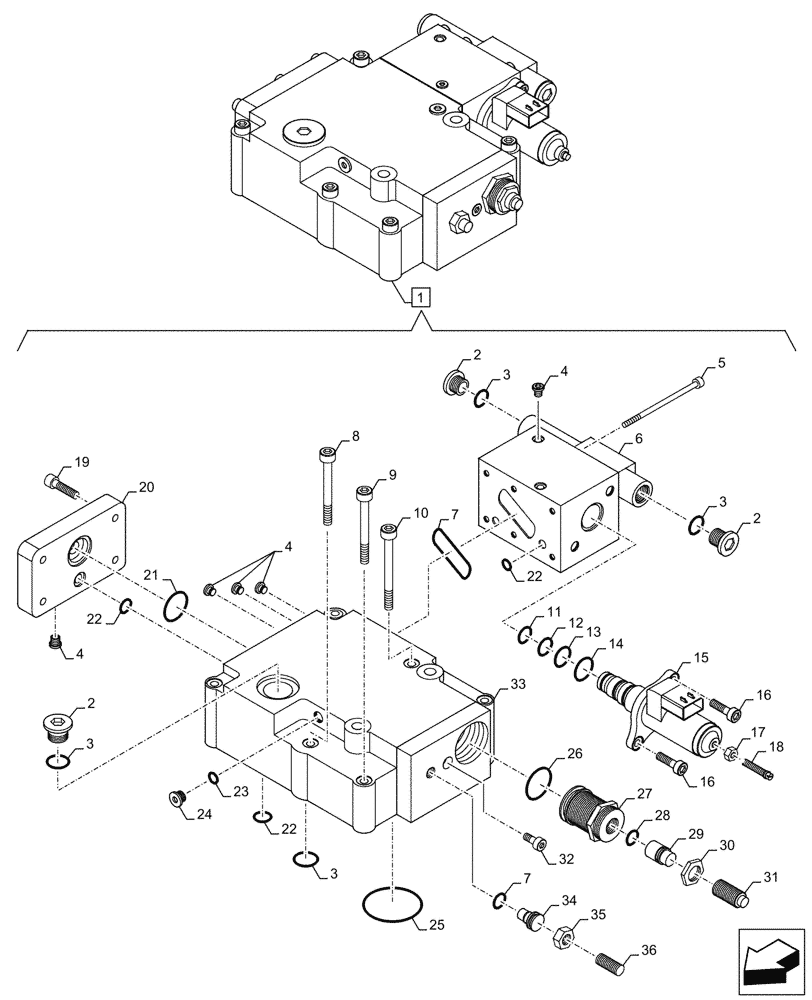

Запчасти Case CX250D LC (35.106.AD[05]) - VARIABLE DELIVERY HYDRAULIC PUMP, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

LJ022350

REGULATOR

ASSY, Incl 2 - 36, Serial Range: -C0223

1шт.

1

LJ022650

REGULATOR

, Start Serial: D0223

1шт.

2

LK00015

PLUG

, Serial Range: -C0223

6шт.

3

154469A1

O-RING

, Serial Range: -C0223

10шт.

4

LK006340

PLUG

, Serial Range: -C0223

32шт.

5

862-6060

HEX SOC SCREW,M6 x 60mm, Cl 12.9

, Serial Range: -C0223

12шт.

6

NSS

NOT SOLD SEPARAT

Body, Incl in 1, Serial Range: -C0223

1шт.

7

154489A1

O-RING

, Serial Range: -C0223

4шт.

8

862-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

, Serial Range: -C0223

2шт.

9

863-8040

HEX SOC SCREW,M8 x 40mm, Cl 12.9

, Serial Range: -C0223

8шт.

10

108R008Y075N

BOLT

, Serial Range: -C0223

2шт.

11

155203A1

O-RING

, Serial Range: -C0223

2шт.

12

155204A1

O-RING

, Serial Range: -C0223

2шт.

13

160652A1

O-RING

, Serial Range: -C0223

2шт.

14

154491A1

O-RING

, Serial Range: -C0223

2шт.

15

LJ022310

VALVE

, Serial Range: -C0223

2шт.

16

LA010920

BOLT,Hex Skt Hd

, Serial Range: -C0223

4шт.

17

LA010930

SPECIAL NUT

, Serial Range: -C0223

2шт.

18

NSS

NOT SOLD SEPARAT

Threaded screw, Incl in 1, Serial Range: -C0223

1шт.

19

861-6025

HEX SOC SCREW,M6 x 25mm, Cl 12.9

, Serial Range: -C0223

12шт.

20

NSS

NOT SOLD SEPARAT

Cover, Incl in 1, Serial Range: -C0223

1шт.

21

LE013380

O-RING

, Serial Range: -C0223

4шт.

22

LE024760

RING

, Serial Range: -C0223

34шт.

23

LE013490

O-RING

, Serial Range: -C0223

2шт.

24

NSS

NOT SOLD SEPARAT

Plug, Incl in 1, Serial Range: -C0223

1шт.

25

LE015270

O-RING

, Serial Range: -C0223

2шт.

26

LE013450

O-RING

, Serial Range: -C0223

2шт.

27

NSS

NOT SOLD SEPARAT

Threaded Support, Incl in 1, Serial Range: -C0223

1шт.

28

LE013540

O-RING

, Serial Range: -C0223

2шт.

29

NSS

NOT SOLD SEPARAT

Support, Incl in 1, Serial Range: -C0223

1шт.

30

LA010640

JAM NUT

, Serial Range: -C0223

2шт.

31

NSS

NOT SOLD SEPARAT

Threaded screw, Incl in 1, Serial Range: -C0223

1шт.

32

862-6016

HEX SOC SCREW,M6 x 16mm, Cl 12.9

, Serial Range: -C0223

8шт.

33

NSS

NOT SOLD SEPARAT

Case, Incl in 1, Serial Range: -C0223

1шт.

34

NSS

NOT SOLD SEPARAT

Support, Incl in 1, Serial Range: -C0223

1шт.

35

LA00065

JAM NUT

, Serial Range: -C0223

2шт.

36

LA012710

SCREW

, Serial Range: -C0223

2шт.
