(35.106.AD[01]) - VARIABLE DELIVERY HYDRAULIC PUMP

Запчасти Case CX250D LC (35.106.AD[01]) - VARIABLE DELIVERY HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

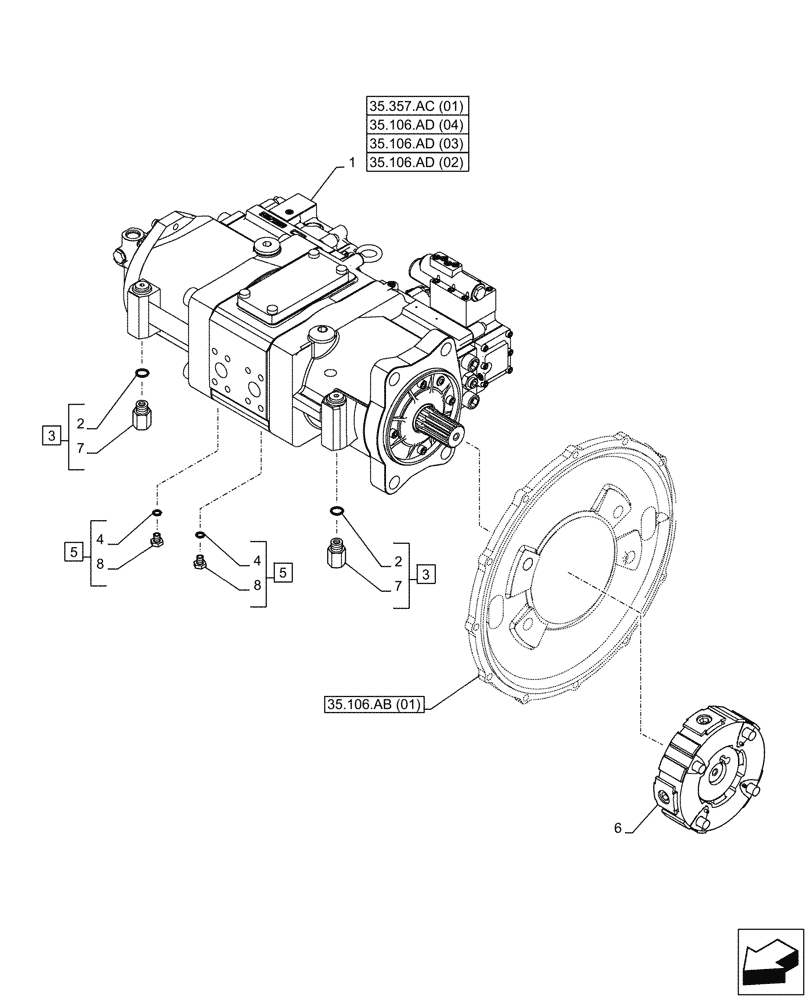

Схема запчастей Case CX250D LC - (35.106.AD[01]) - VARIABLE DELIVERY HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS
35.106.ab (01)
3
4
8
6
5
2
1
3
4
2
7
8
5
7
35.106.ad (03)
35.357.ac (01)
35.106.ad (02)
35.106.ad (04)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBJ18651

HYDRAULIC PUMP

ASSY, Serial Range: -C0143

1шт.

See also Figure 35.106.AD (02), 35.106.AD (03), 35.106.AD (04), 35.357.AC (01)

1шт.

1

KBJ18652

HYDRAULIC PUMP

ASSY, Start Serial: D0143

1шт.

See also Figure 35.106.AD (02), 35.106.AD (03), 35.106.AD (04), 35.357.AC (01)

1шт.

2

154475A1

O-RING

2шт.

3

KHJ18190

STUD

ASSY, Incl 2, 7

2шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

5

159002A1

PLUG

ASSY, Incl 4, 8

2шт.

6

KRJ29521

HYDRAULIC PUMP

1шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

2шт.

8

NSS

NOT SOLD SEPARAT

Plug, Incl in 5

2шт.
