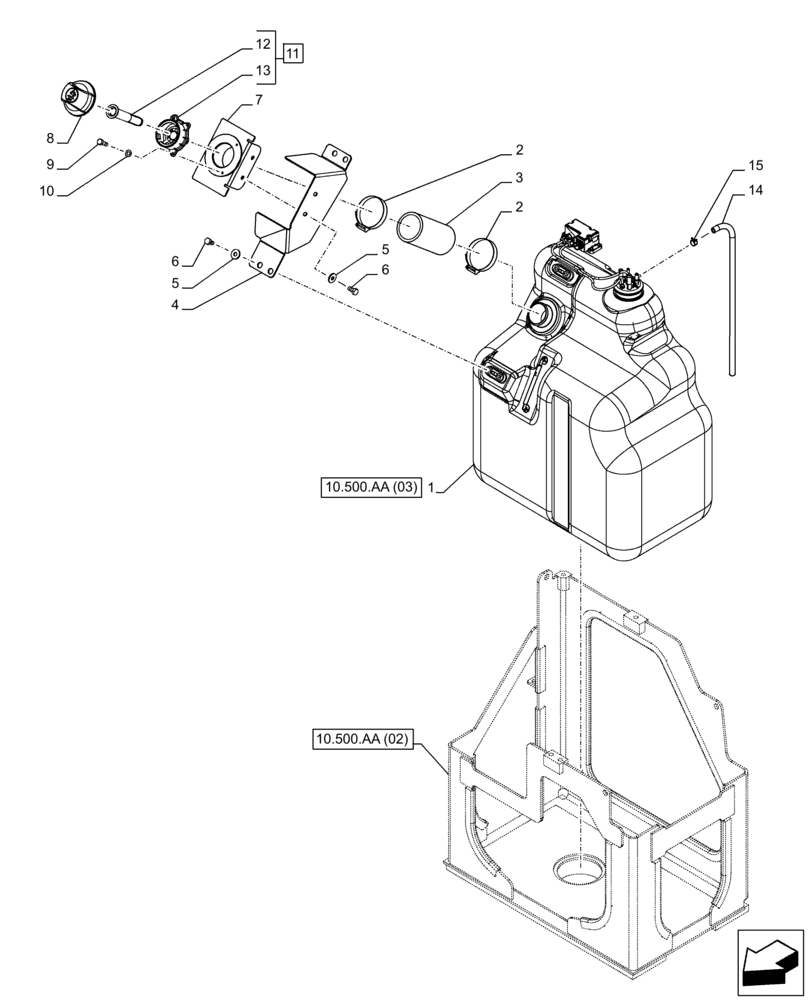

Запчасти Case CX250D LC (10.500.AA[01]) - DEF/ADBLUE™ TANK (10) - ENGINE

1

KBH14691

TANK

Urea (120 Liter), ASSY, Serial Range: -C0036

1шт.

1

KBH16770

TANK

Urea (120 Liter), ASSY, Start Serial: D0036

1шт.

2

164968A1

COLLAR

, Start Serial: D0099

2шт.

3

KBH12480

HOSE

, Start Serial: D0099

1шт.

4

KBH13570

BRACKET

, Start Serial: D0099

1шт.

5

KHH16160

WASHER

8mm ID, Start Serial: D0099

2шт.

6

102R008A016N

BOLT

M8 x 16mm, Start Serial: D0099

6шт.

7

KBH13581

BRACKET

, Start Serial: D0099

1шт.

8

KHH16980

FILLER CAP

Urea, Start Serial: D0099

1шт.

9

KHH15640

BOLT

M5 x 16mm, Start Serial: D0099

3шт.

10

KHH15650

WASHER

5mm ID, Start Serial: D0099

3шт.

11

KHH15591

FILTER

ASSY, Urea Tank, Incl 12, 13, Start Serial: D0099

1шт.

12

KHH16450

FILTER STRAINER

1шт.

13

KHH17420

BASE PLATE

1шт.

14

157779A1

HOSE

500mm, Start Serial: D0099

1шт.

15

165951A1

CLAMP

, Start Serial: D0099

1шт.
