(90.124.AL[02]) - VAR - 781277 - SEAT, SLIDE GUIDE

Запчасти Case CX250D LC (90.124.AL[02]) - VAR - 781277 - SEAT, SLIDE GUIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

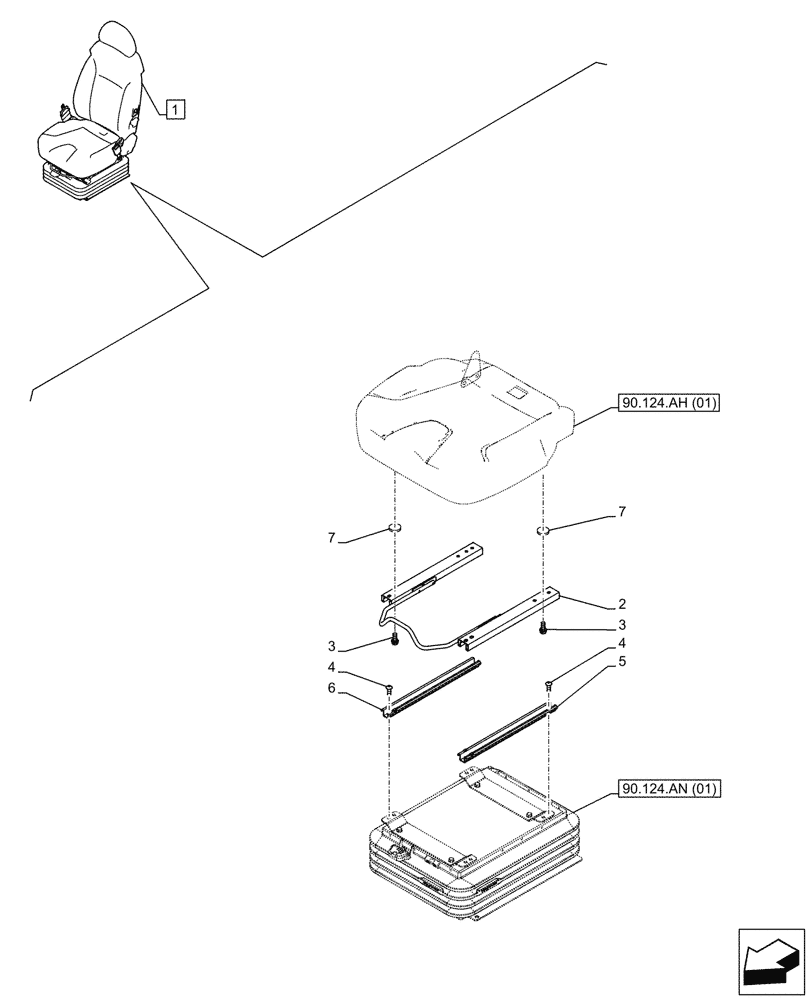

Схема запчастей Case CX250D LC - (90.124.AL[02]) - VAR - 781277 - SEAT, SLIDE GUIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.an (01)
6
4
4
7
7
5
2
3
3
1
90.124.ah (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN38810

DRIVER SEAT

ASSY, Incl 2 - 7, Serial Range: -C0215

1шт.

1

KHN42780

DRIVER SEAT

ASSY, Incl 2 - 7, Serial Range: D0215-C0216

1шт.

1

KHN42781

DRIVER SEAT

ASSY, Incl 2 - 7, Start Serial: D0216

1шт.

2

KHN40410

LEVER

1шт.

3

KHN40390

BOLT

4шт.

4

KHN40130

BOLT

4шт.

5

KHN40200

SLIDER

LH

1шт.

6

KHN40210

SLIDER

RH

1шт.

7

KHN40400

SCREW

4шт.

Выбрано товаров: 9
