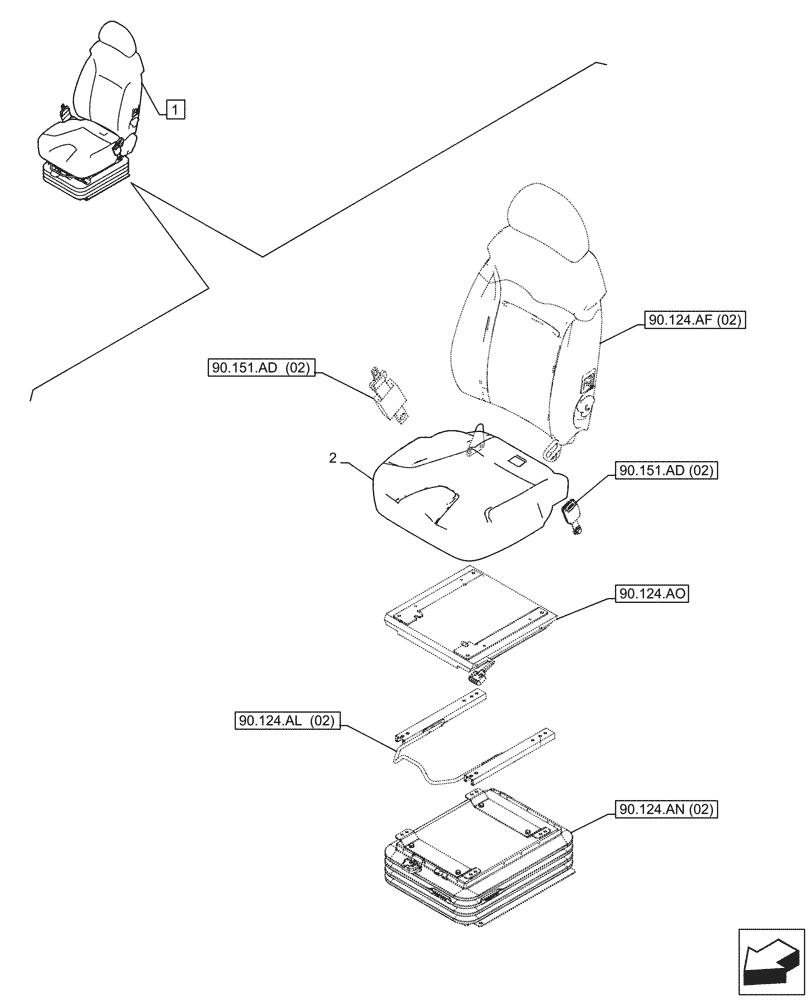

Запчасти Case CX250D LC (90.124.AH[02]) - VAR - 488035 - SEAT CUSHION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KHN35630

DRIVER SEAT

ASSY, Incl 2, Serial Range: -C0171

1шт.

See also Figure 90.124.AF (02), 90.124.AE (02), 90.124.AL (03), 90.124.AN (02), 90.124.AO, 90.151.AD (02)

1шт.

1

KHN42800

DRIVER SEAT

ASSY, Incl 2, Serial Range: D0171-C0173

1шт.

1

KHN42801

DRIVER SEAT

ASSY, Incl 2, Start Serial: D0173

1шт.

2

KHN40710

SEAT CUSHION

, Serial Range: -C0173

1шт.

2

KHN40711

SEAT CUSHION

, Start Serial: D0173

1шт.
