(90.124.AF[01]) - VAR - 781277 - SEAT BACK

Запчасти Case CX250D LC (90.124.AF[01]) - VAR - 781277 - SEAT BACK (90) - PLATFORM, CAB, BODYWORK AND DECALS

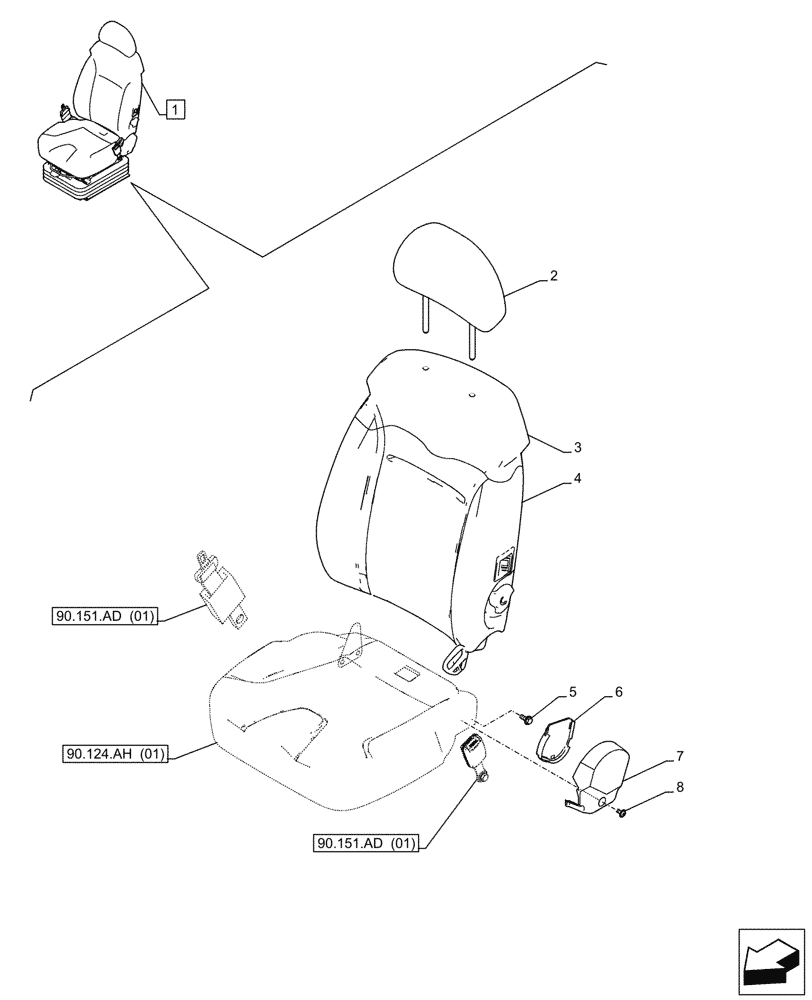

Схема запчастей Case CX250D LC - (90.124.AF[01]) - VAR - 781277 - SEAT BACK (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.151.ad (01)
6
3
5
7
4
8
2
1
90.124.ah (01)
90.151.ad (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN38810

DRIVER SEAT

ASSY, Incl 2 - 8, Serial Range: -C0208

1шт.

1

KHN42780

DRIVER SEAT

ASSY, Incl 2 - 8, Serial Range: D0208-C0209

1шт.

1

KHN42781

DRIVER SEAT

ASSY, Incl 2 - 8, Start Serial: D0209

1шт.

2

KHN40280

SEAT HEADREST

, Serial Range: -C0209

1шт.

2

KHN40281

SEAT HEADREST

, Start Serial: D0209

1шт.

3

KHN17680

COVER

1шт.

4

KHN40750

BACK

, Serial Range: -C0209

1шт.

4

KHN40751

BACK

, Start Serial: D0209

1шт.

5

KHN40240

BOLT

4шт.

6

KHN40250

HINGE

1шт.

7

KHN40270

HINGE

1шт.

8

KHN40260

SCREW

2шт.
