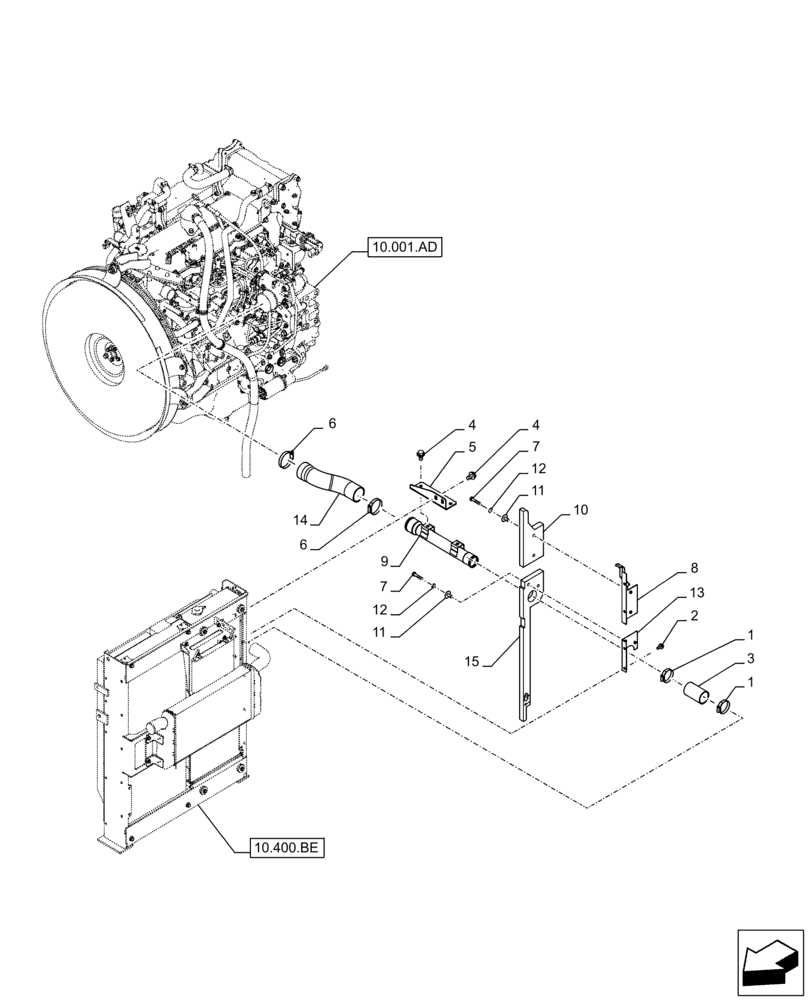

Запчасти Case CX250D LC (10.310.AD) - AFTERCOOLER LINE, ENGINE (10) - ENGINE

1

164967A1

COLLAR

2шт.

2

166350A1

BOLT

M8 x 20

4шт.

3

KRH13810

LARGE HOSE

1шт.

4

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

5

KRH13830

BRACKET, SUPPORTING

1шт.

6

KHH0411

COLLAR

2шт.

7

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

1шт.

(Q.ty 4) for PN KBH13072; (Q.ty 3) for PN KBH13073

1шт.

8

KBH13040

BRACKET

1шт.

9

KRH10320

SUCTION PIPE

Inlet

1шт.

10

KBH13050

SEAL

1шт.

11

KHH0358

RETAINER

1шт.

(Q.ty 4) for PN KBH13072; (Q.ty 3) for PN KBH13073

1шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

(Q.ty 4) for PN KBH13072; (Q.ty 3) for PN KBH13073

1шт.

13

KBH13061

BRACKET

, Serial Range: -C0031

1шт.

13

KBH13062

BRACKET

, Start Serial: D0031

1шт.

14

KBH12430

AIR HOSE

1шт.

15

KBH13072

SEAL

, Serial Range: -C0031

1шт.

15

KBH13073

SEAL

Cushion, Start Serial: D0031

1шт.
