(90.105.CF[02]) - VAR - 481027 - HOOD, FUEL TRANSFER PUMP, TROPICAL COOLING PACKAGE

Запчасти Case CX250D LC (90.105.CF[02]) - VAR - 481027 - HOOD, FUEL TRANSFER PUMP, TROPICAL COOLING PACKAGE (90) - PLATFORM, CAB, BODYWORK AND DECALS

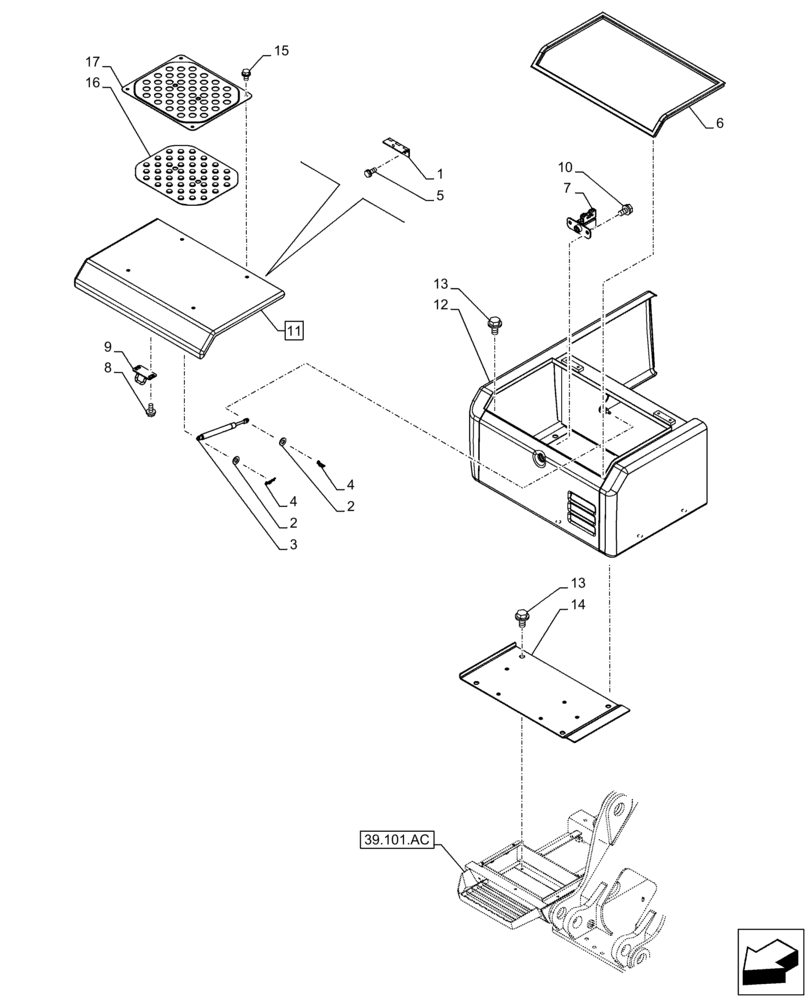

Схема запчастей Case CX250D LC - (90.105.CF[02]) - VAR - 481027 - HOOD, FUEL TRANSFER PUMP, TROPICAL COOLING PACKAGE (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
9
5
7
13
2
13
10
12
2
11
4
17
15
39.101.ac
3
16
1
6
14
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN17220

HINGE

2шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

3

KHN38920

DAMPER

1шт.

4

153077A1

COTTER PIN

2шт.

5

KAN2771

BOLT,Spcl

4шт.

6

KHN36780

TRIM

1шт.

7

KHN35780

LOCK

1шт.

8

166351A1

BOLT,Sems, M10 x 20mm

2шт.

9

KHN12740

SUPPORT

1шт.

10

166350A1

BOLT

2шт.

11

KHN36740G1

COVER

ASSY, Incl 1

1шт.

12

KHN36750G1

COVER

1шт.

13

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

9шт.

14

KBN17130G1

COVER

1шт.

15

KHN13540

BOLT,Spcl

4шт.

16

KHN10940

RUBBER PAD

2шт.

17

KHN13510B1

COVER

1шт.
