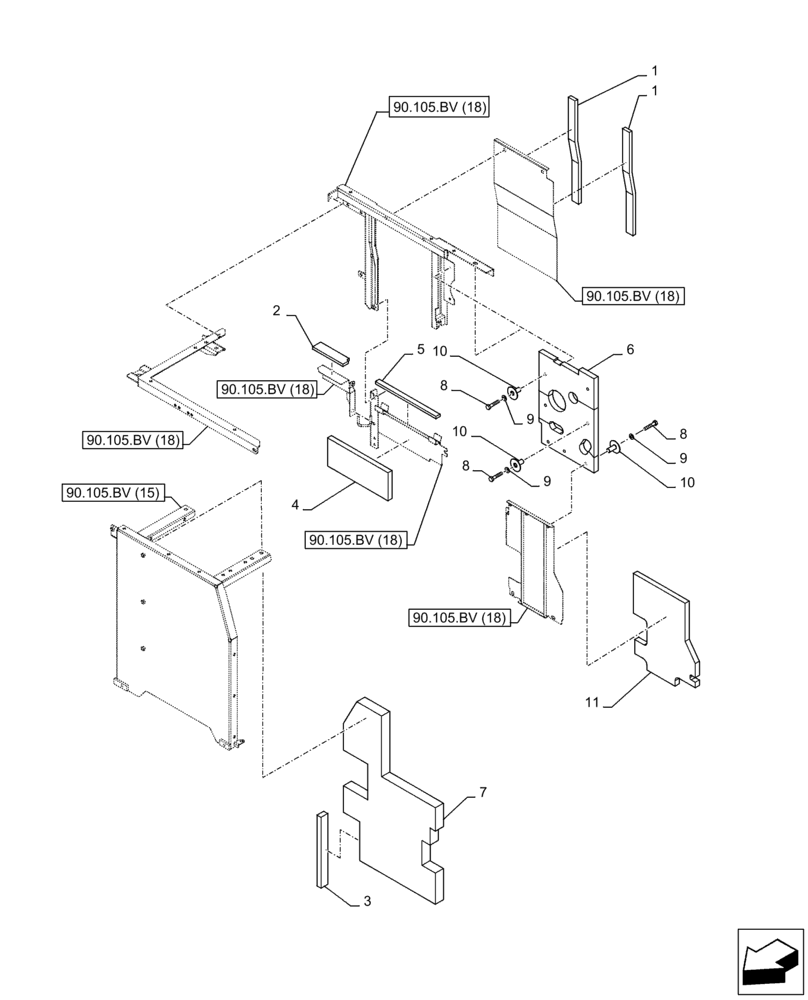

Запчасти Case CX250D LC (90.105.BV[19]) - VAR - 481027 - HOUSING & COVERS, INSULATION, TROPICAL COOLING PACKAGE (90) - PLATFORM, CAB, BODYWORK AND DECALS
![Схема запчастей Case CX250D LC - (90.105.BV[19]) - VAR - 481027 - HOUSING & COVERS, INSULATION, TROPICAL COOLING PACKAGE (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/casece/5265460.png)
10
2
11
1
5
9
6
90.105.bv (18)
8
90.105.bv (18)
90.105.bv (15)
1
7
8
90.105.bv (18)
10
90.105.bv (18)
10
4
90.105.bv (18)
8
9
90.105.bv (18)
3
9
№
Артикул
Название
Примечание
Количество
1
KBN16520
INSULATION
2шт.
2
KBN20060
SEAL
1шт.
3
KSN14740
SEAL PROTECTION
1шт.
4
KBN19810
SEAL
1шт.
5
KBN16410
SEAL
1шт.
6
KBN19930
SEAL
1шт.
7
KBN19500
INSULATION
1шт.
8
827-8040
BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9
7шт.
9
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
7шт.
10
KHH0358
RETAINER
7шт.
11
KBN19830
SEAL
1шт.
Выбрано товаров: 11
