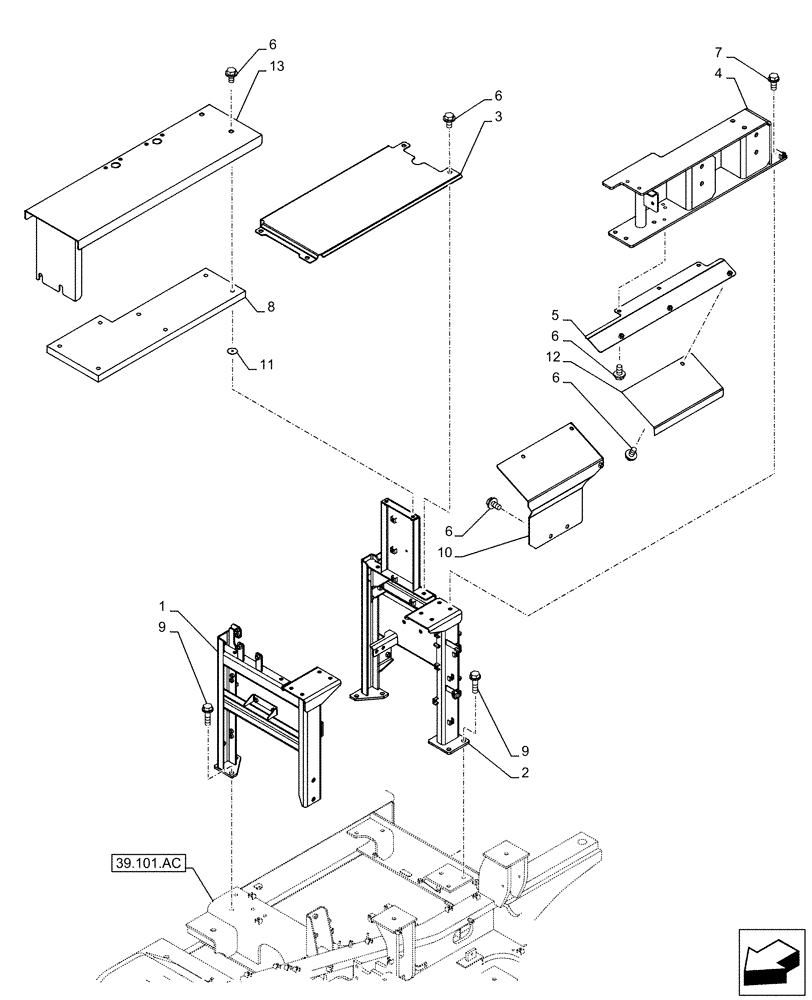

Запчасти Case CX250D LC (90.105.BV[13]) - STD + VAR - 481027 - HOUSING & COVERS, TROPICAL COOLING PACKAGE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KBN19701

FRAME

, Serial Range: -C0128

1шт.

1

KBN19702

FRAME

, Start Serial: D0128

1шт.

2

KBN19710

FRAME

, Serial Range: -C0128

1шт.

2

KBN19712

FRAME

, Start Serial: D0128

1шт.

3

KBN19730

COVER

1шт.

4

KBN19720

FRAME

1шт.

5

KBN19740

COVER

1шт.

6

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

17шт.

7

166352A1

BOLT

8шт.

8

KBN22590

SEAL

, Serial Range: -C0131

1шт.

8

KBN22591

SEAL

, Start Serial: D0131

1шт.

9

105R012Y045R

BOLT

9шт.

10

KBN19860

COVER

1шт.

11

KHN35020

WASHER

7шт.

12

KBN19870

COVER

1шт.

13

KBN19881

FRAME

, Serial Range: -C0131

1шт.

13

KBN19882

FRAME

, Start Serial: D0131

1шт.
