(90.105.BV[10]) - STD + VAR - 488031 - HOUSING & COVERS, INSULATION

Запчасти Case CX250D LC (90.105.BV[10]) - STD + VAR - 488031 - HOUSING & COVERS, INSULATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

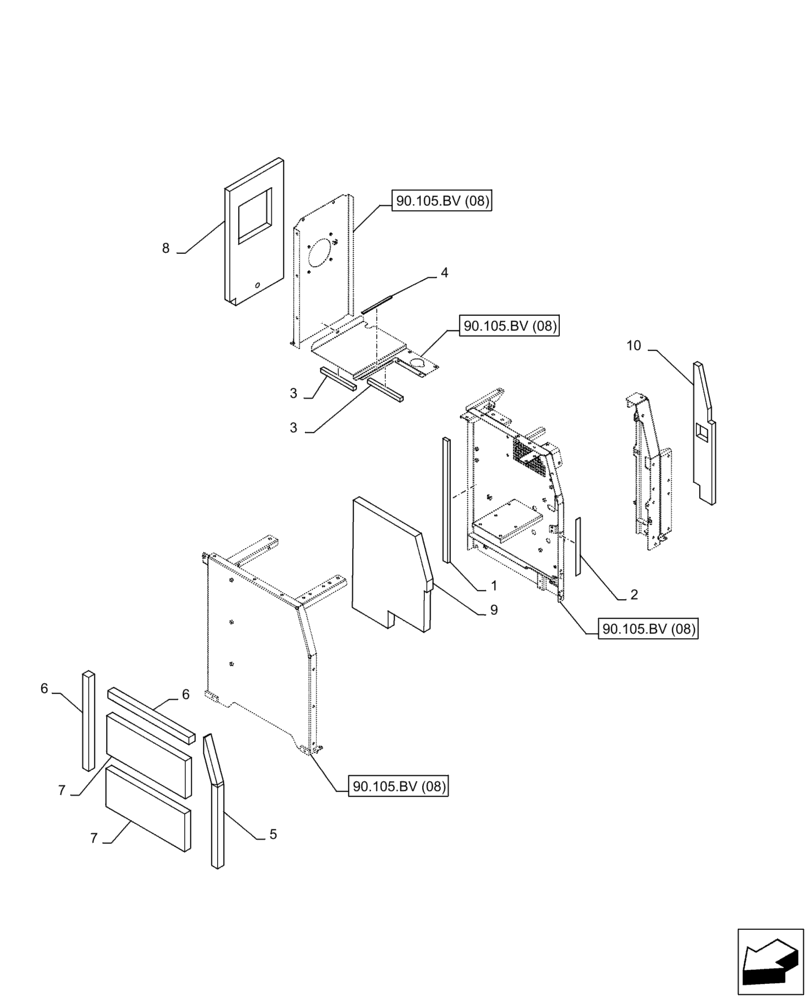

Схема запчастей Case CX250D LC - (90.105.BV[10]) - STD + VAR - 488031 - HOUSING & COVERS, INSULATION (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
1
7
6
3
90.105.bv (08)
90.105.bv (08)
7
5
4
90.105.bv (08)
9
90.105.bv (08)
3
10
6
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBN16660

SEAL

1шт.

2

160760A1

GROMMET

1шт.

3

KBN16760

SEAL PROTECTION

2шт.

4

KNN11350

SEAL

1шт.

5

KBN16770

SEAL

1шт.

6

KRN22560

NOISE PROTECTION

2шт.

7

KRN22400

NOISE PROTECTION

2шт.

8

KBN19920

INSULATION

1шт.

9

KBN19560

INSULATION

1шт.

10

KBN19990

SEAL

1шт.

Выбрано товаров: 10
