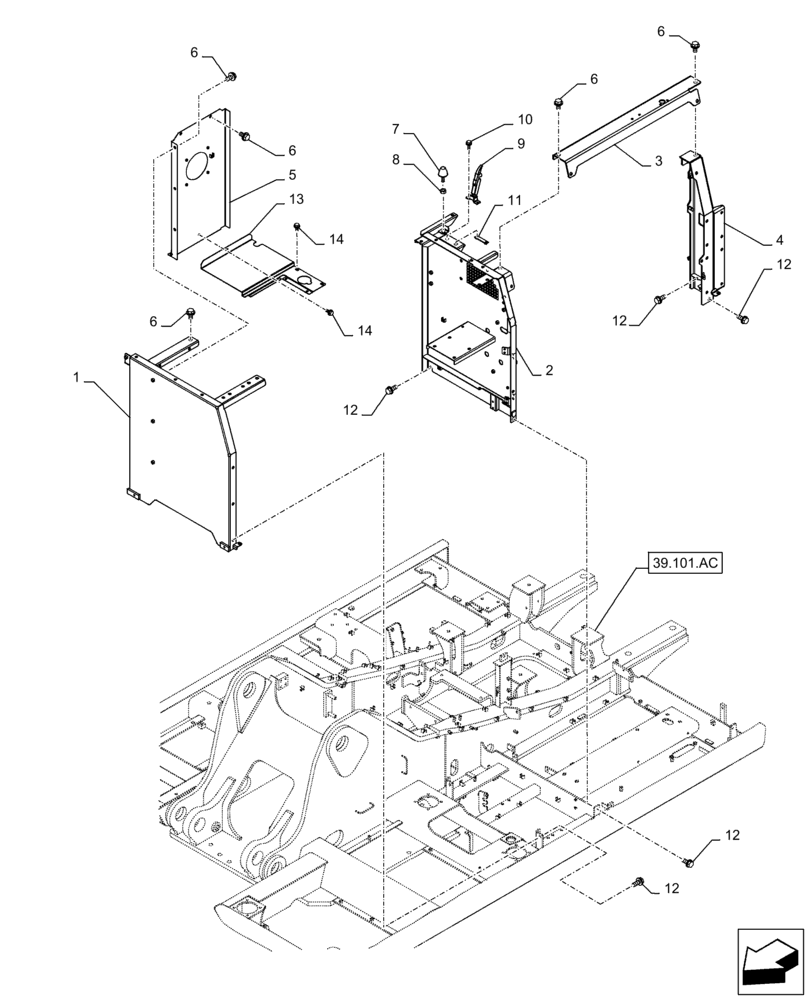

Запчасти Case CX250D LC (90.105.BV[08]) - STD + VAR - 488031 - HOUSING & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KBN19570

FRAME

1шт.

2

KBN19671

FRAME

, Serial Range: -C0160

1шт.

2

KBN19672

FRAME

, Start Serial: D0160

1шт.

3

KBN20030

FRAME

, Serial Range: -C0160

1шт.

3

KBN20031

FRAME

, Start Serial: D0160

1шт.

4

KBN19681

FRAME

, Serial Range: -C0160

1шт.

4

KBN19682

FRAME

, Start Serial: D0160

1шт.

5

KBN19750

COVER

1шт.

6

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

12шт.

7

151108A1

STOP

1шт.

8

KBH0446

NUT

1шт.

9

150790A1

LATCH

1шт.

10

167182A1

BOLT,Sems, M8 x 25mm

2шт.

11

KHN24200

PLATE

1шт.

12

166352A1

BOLT

6шт.

13

KBN19790

COVER

1шт.

14

166350A1

BOLT

3шт.
