(90.105.BV[06]) - STD + VAR - 488031 - HOUSING & COVERS

Запчасти Case CX250D LC (90.105.BV[06]) - STD + VAR - 488031 - HOUSING & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

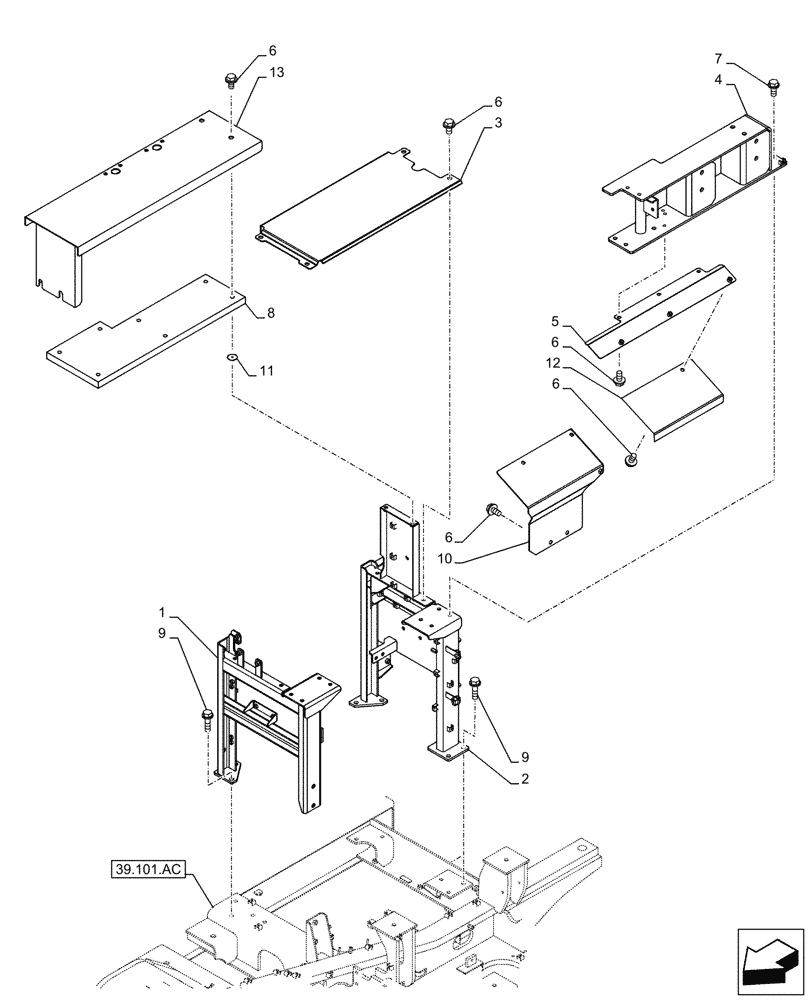

Схема запчастей Case CX250D LC - (90.105.BV[06]) - STD + VAR - 488031 - HOUSING & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS
39.101.ac
6
9
6
13
7
6
12
6
4
11
5
1
10
3
8
9
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBN19701

FRAME

, Serial Range: -C0156

1шт.

1

KBN19702

FRAME

, Start Serial: D0156

1шт.

2

KBN19711

FRAME

, Serial Range: -C0156

1шт.

2

KBN19712

FRAME

, Start Serial: D0156

1шт.

3

KBN19730

COVER

1шт.

4

KBN19720

FRAME

1шт.

5

KBN19740

COVER

1шт.

6

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

17шт.

7

166352A1

BOLT

8шт.

8

KBN22590

SEAL

, Serial Range: -C0157

1шт.

8

KBN22591

SEAL

, Start Serial: D0157

1шт.

9

105R012Y045R

BOLT

9шт.

10

KBN19860

COVER

1шт.

11

KHN35020

WASHER

1шт.

(Q.ty 7) for PN KBN22590; (Q.ty 9) for PN KBN22591

1шт.

12

KBN19870

COVER

1шт.

13

KBN19881

FRAME

, Serial Range: -C0157

1шт.

13

KBN19882

FRAME

, Start Serial: D0157

1шт.
