(90.100.AU[04]) - VAR - 481027 - ENGINE HOOD, TROPICAL COOLING PACKAGE

Запчасти Case CX250D LC (90.100.AU[04]) - VAR - 481027 - ENGINE HOOD, TROPICAL COOLING PACKAGE (90) - PLATFORM, CAB, BODYWORK AND DECALS

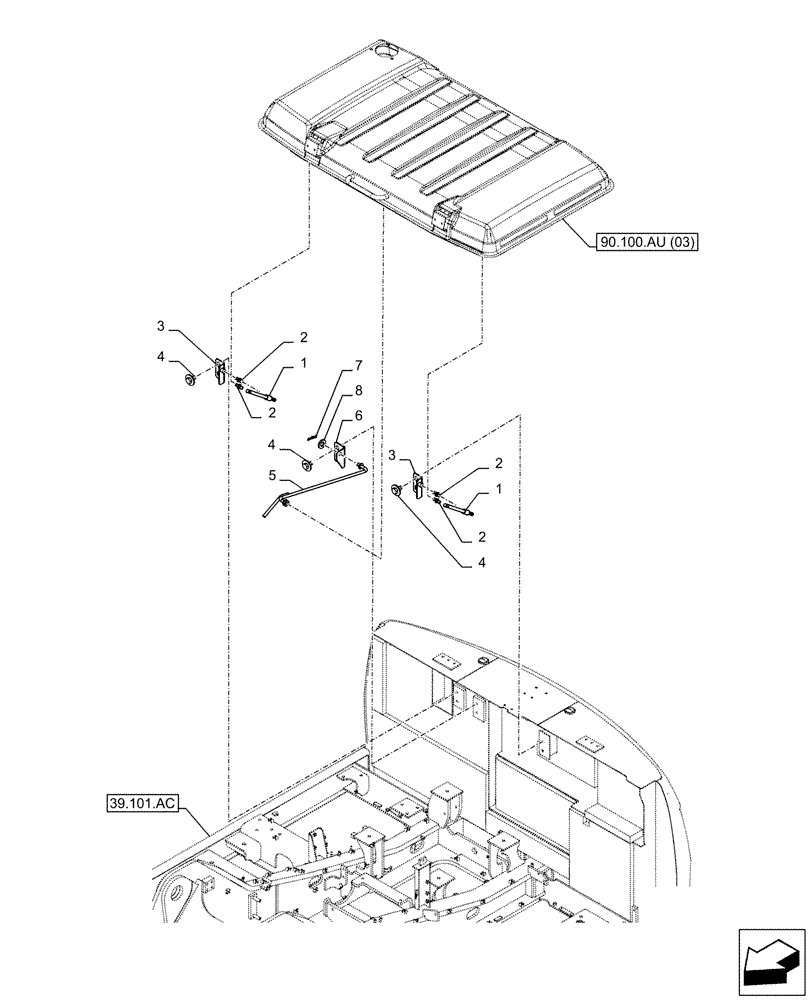

Схема запчастей Case CX250D LC - (90.100.AU[04]) - VAR - 481027 - ENGINE HOOD, TROPICAL COOLING PACKAGE (90) - PLATFORM, CAB, BODYWORK AND DECALS
39.101.ac
4
3
2
1
6
8
5
1
3
4
7
2
4
2
2
90.100.au (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBN19550

GAS STRUT

2шт.

2

KHN24170

BALL

4шт.

3

KBN16280

BRACKET

2шт.

4

KHN12020

BOLT,Spcl

6шт.

5

KBN19780

STAY

1шт.

6

KBN16290

BRACKET

1шт.

7

KHN2373

PIN, SPLIT (COTTER)

1шт.

8

157548A1

WASHER

1шт.

Выбрано товаров: 8
