(90.100.AU[01]) - STD + VAR - 488031 - ENGINE HOOD

Запчасти Case CX250D LC (90.100.AU[01]) - STD + VAR - 488031 - ENGINE HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

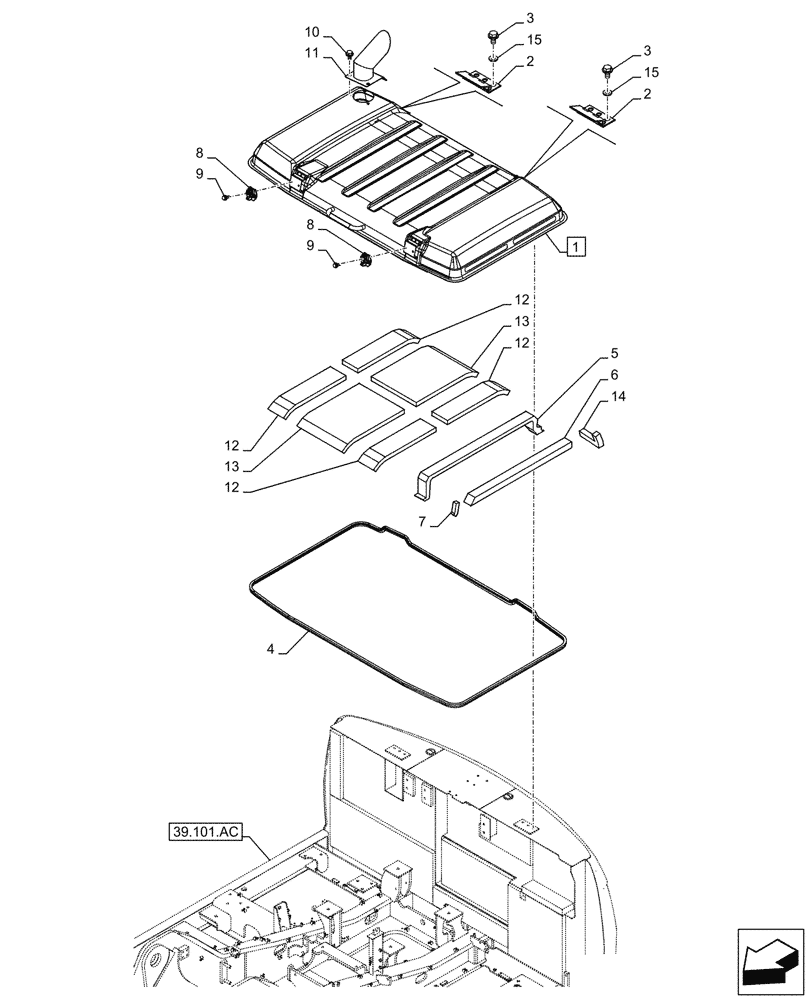

Схема запчастей Case CX250D LC - (90.100.AU[01]) - STD + VAR - 488031 - ENGINE HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS
39.101.ac
6
9
8
12
12
9
3
4
5
7
12
2
10
2
14
11
15
8
13
1
3
12
13
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBN19770G1

ENGINE HOOD

ASSY, Incl 2

1шт.

2

KHN35200

HINGE

2шт.

3

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

6шт.

4

KHN35810

TRIM

1шт.

5

KBN17030

SEAL

1шт.

6

KBN20070

SEAL

1шт.

7

KRH15730

INSULATION

1шт.

8

150785A1

STOP LOCK

2шт.

9

167182A1

BOLT,Sems, M8 x 25mm

4шт.

10

KHN39331

BOLT

4шт.

11

KBN19510

EXHAUST SYSTEM PIPE

1шт.

12

KBN19460

INSULATION

4шт.

13

KBN19480

INSULATION

2шт.

14

KBN19470

INSULATION

1шт.

15

KHN0296

WASHER

6шт.
