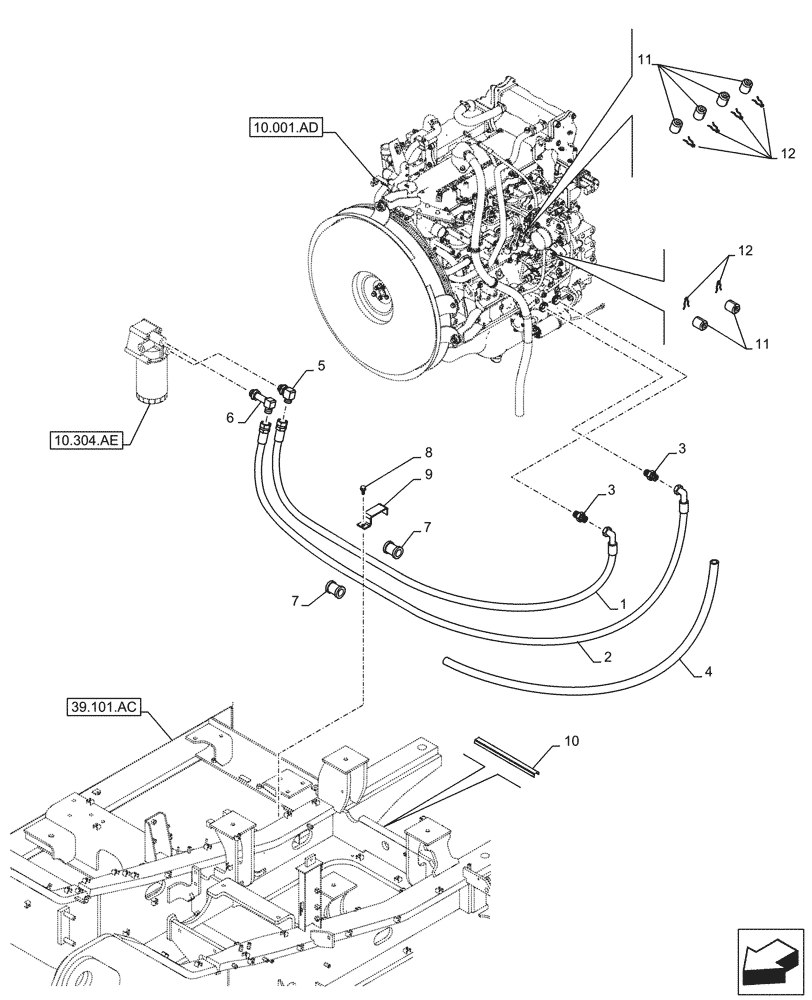

Запчасти Case CX250D LC (10.304.AF[01]) - ENGINE OIL FILTER, LINE (10) - ENGINE

1

KRH10330

HYDRAULIC HOSE,19.00 mm ID x 1350.00 mm

1шт.

2

KBH10590

HYDRAULIC HOSE,19.00 mm ID x 1450.00 mm

1шт.

3

KHH14620

ADAPTER

G3/4" x G3/4"

2шт.

4

KHR21080

PLASTIC-RUBBER TUBE

1000mm

2шт.

580mm for Hydraulic Hose KRH10330; 700mm for Hydraulic Hose KBH10590

1шт.

5

KHH14660

ELBOW

G3/4" x G3/4"

1шт.

6

KHH14690

ELBOW

G3/4"

1шт.

7

KHJ2023

HOSE CLAMP

2шт.

8

166052A1

BOLT

M10 x 25

1шт.

9

KHH13550

BRACKET

1шт.

10

150953A1

RUBBER BLOCK

1шт.

11

KHH14570

CAP

6шт.

12

KHH14600

LOCK PIN

6шт.
