(88.100.35[212]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE

Запчасти Case CX250D LC (88.100.35[212]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES

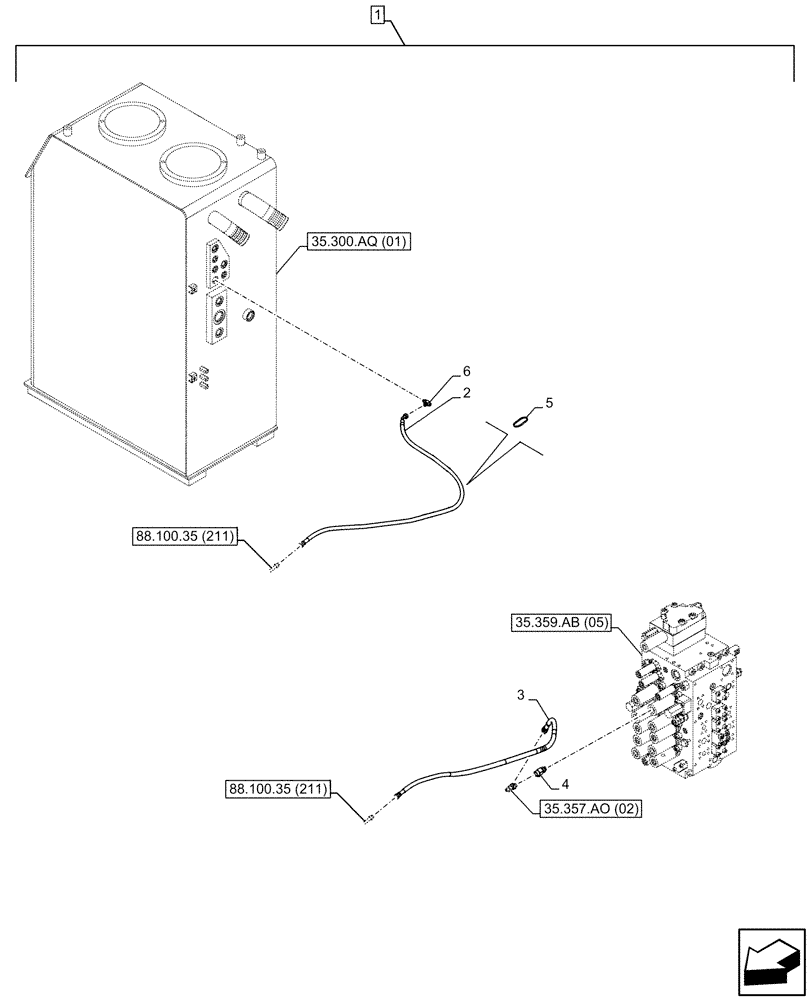

Схема запчастей Case CX250D LC - (88.100.35[212]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES
88.100.35 (211)
35.300.aq (01)
3
35.359.ab (05)
6
4
5
88.100.35 (211)
35.357.ao (02)
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP453-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ30750

HYDRAULIC HOSE

1900mm

1шт.

3

KHJ24270

HYDRAULIC HOSE

1300mm

1шт.

4

KHJ31880

TEE

1шт.

5

150496A1

MOUNTING CLIP

9шт.

6

KHJ11560

TEE

1шт.

Выбрано товаров: 7
