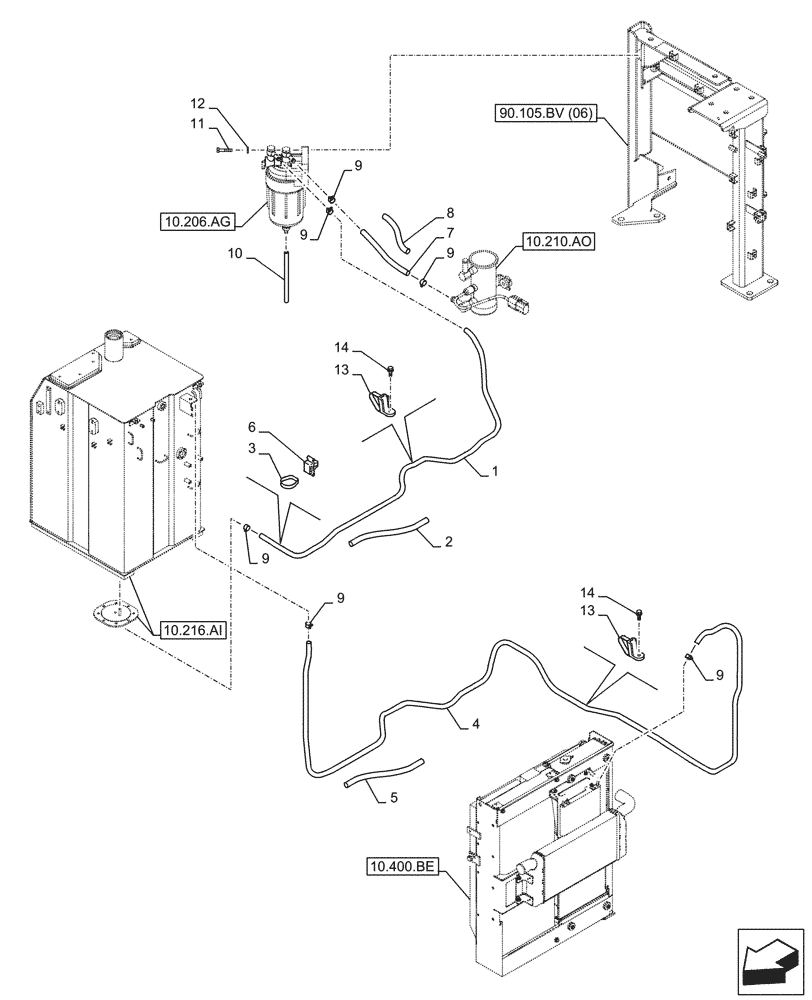

Запчасти Case CX250D LC (10.216.BA[01]) - FUEL TANK, LINES (10) - ENGINE

1

KHH16030

HOSE

2950mm

1шт.

2

KHR3247

PLASTIC-RUBBER TUBE

2900mm

1шт.

3

150496A1

MOUNTING CLIP

11шт.

4

KHH15940

HOSE

5500mm

1шт.

5

KHR36540

PROTECTIVE SLEEVE

5400mm

1шт.

6

KHR10220

MOUNTING CLIP

10шт.

7

KHH18390

HOSE

370mm

1шт.

8

158059A1

PLASTIC-RUBBER TUBE

300mm

1шт.

9

KHH0405

MOUNTING CLIP

6шт.

10

KHH11720

PLASTIC-RUBBER TUBE,7 mm ID x 11 mm OD

600mm

1шт.

11

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

12

153081A1

WASHER

2шт.

13

KHR2581

CLAMP

6шт.

14

KHJ1215

BOLT,Spcl

6шт.
