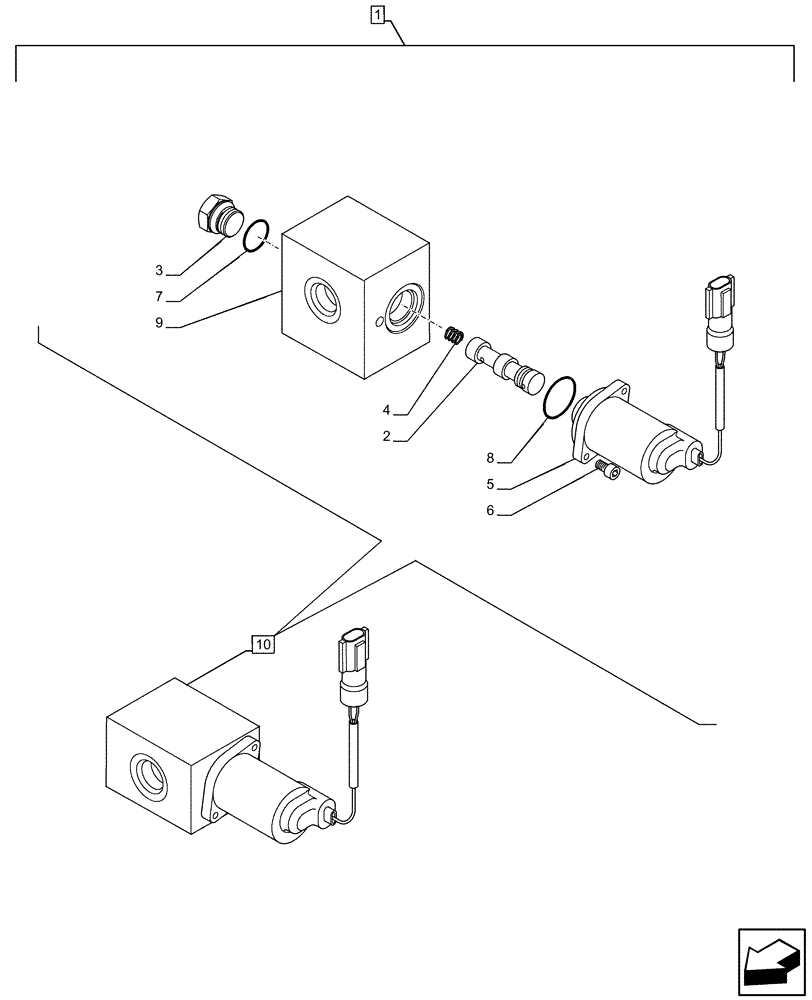

Запчасти Case CX250D LC (88.100.35[165]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, COMPONENTS (88) - ACCESSORIES

1

KG1BP445-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve, Incl 2 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Pin, Incl in 10

1шт.

3

155456A1

PLUG

1шт.

4

LSC0278

COMPRESSION SPRING

1шт.

5

CDP0873

SOLENOID VALVE

1шт.

6

160298A1

BOLT,Hex Skt

4шт.

7

154462A1

O-RING

1шт.

8

154482A1

O-RING

1шт.

9

NSS

NOT SOLD SEPARAT

Body, Incl in 10

1шт.

10

162538A1

VALVE

ASSY, Incl 2 - 9

1шт.
