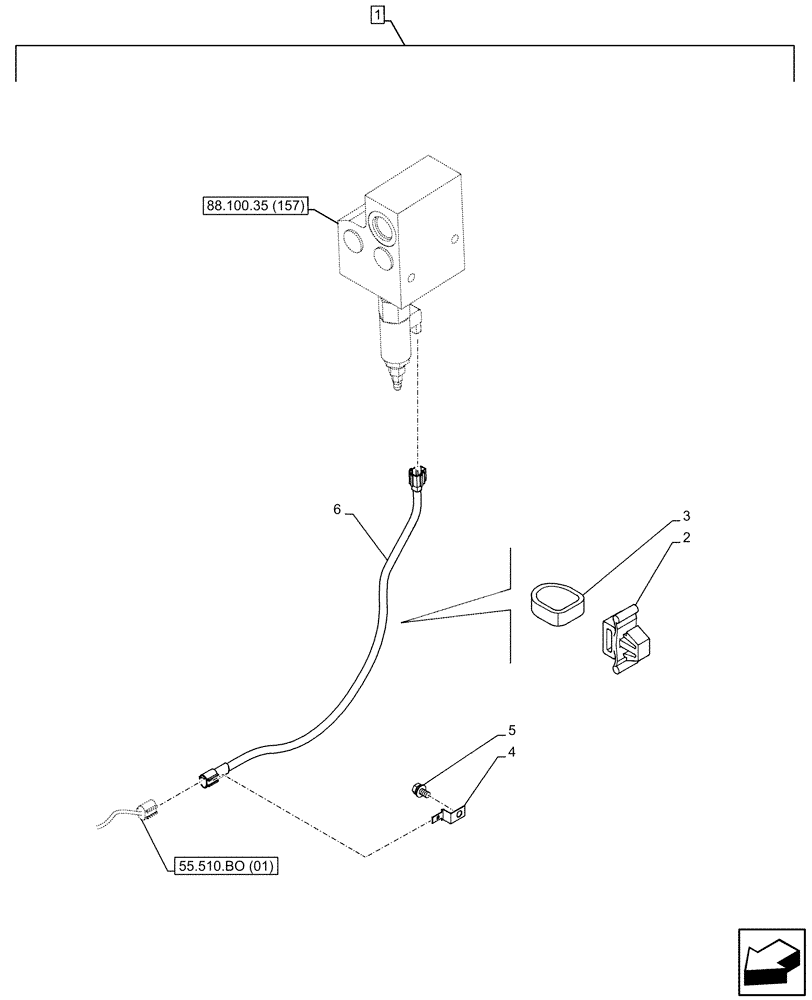

Запчасти Case CX250D LC (88.100.35[159]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, RELIEF VALVE, WIRE HARNESS (88) - ACCESSORIES

1

KG1BP445-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHR10220

MOUNTING CLIP

1шт.

3

150496A1

MOUNTING CLIP

250mm

2шт.

4

158962A1

CLIP

1шт.

5

167518A1

BOLT

M8 x 16mm

1шт.

6

KHR25520

WIRE HARNESS

1шт.
