Запчасти Case CX250D LC (88.100.35[158]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, RELIEF VALVE, COMPONENTS (88) - ACCESSORIES

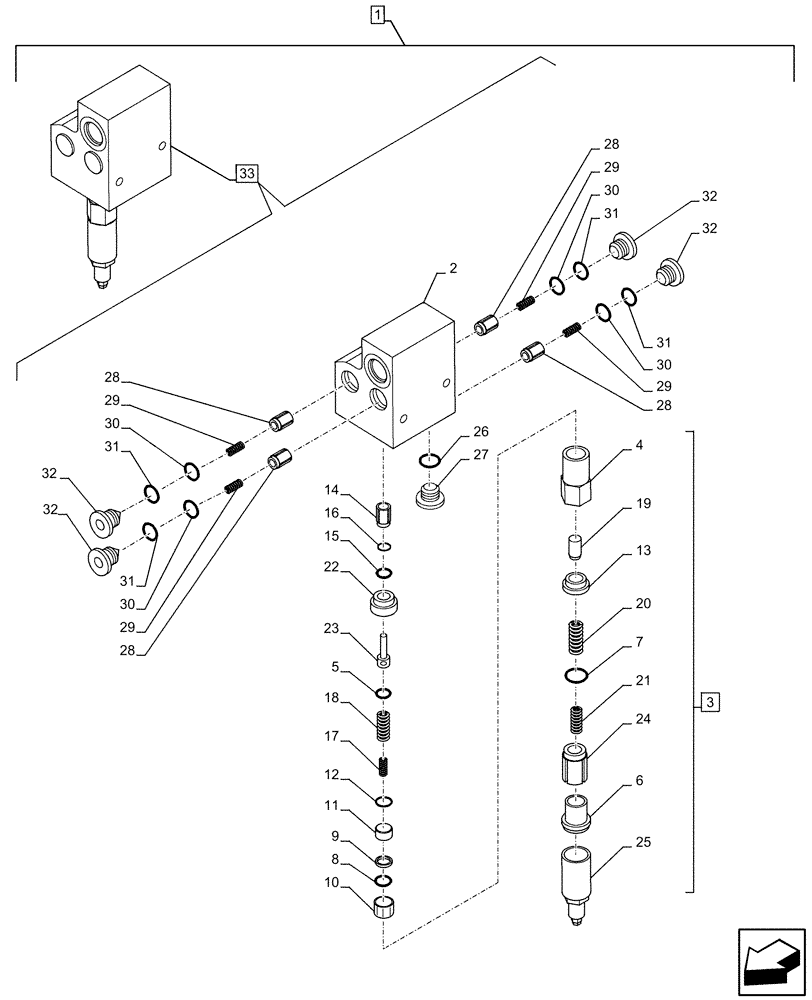

Схема запчастей Case CX250D LC - (88.100.35[158]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, RELIEF VALVE, COMPONENTS (88) - ACCESSORIES
31
24
8
22
11
17
2
30
18
29
4
30
29
27
30
9
29
1
3
10
31
33
23
14
6
21
28
15
25
13
31
26
31
7
28
32
32
32
28
16
29
20
28
30
5
32
19
12

Артикул

Название

Примечание

Количество

1

KG1BP445-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve, Incl 2 - 33

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Case, Incl in 33

1шт.

3

KHJ27380

VALVE

ASSY, Incl 4 - 25

1шт.

4

NSS

NOT SOLD SEPARAT

Body, Incl in 3

1шт.

5

154503A1

O-RING

1шт.

6

NSS

NOT SOLD SEPARAT

Plug, Incl in 3

1шт.

7

154508A1

O-RING

1шт.

8

154482A1

O-RING

1шт.

9

NSS

NOT SOLD SEPARAT

Ring, Back-up, Incl in 3

1шт.

10

NSS

NOT SOLD SEPARAT

Filter, Incl in 3

1шт.

11

NSS

NOT SOLD SEPARAT

Stopper, Incl in 3

1шт.

12

NSS

NOT SOLD SEPARAT

Ring, Incl in 3

1шт.

13

NSS

NOT SOLD SEPARAT

Seat, Incl in 3

1шт.

14

NSS

NOT SOLD SEPARAT

Plunger, Incl in 3

1шт.

15

154462A1

O-RING

1шт.

16

NSS

NOT SOLD SEPARAT

Ring, Back-up, Incl in 3

1шт.

17

NSS

NOT SOLD SEPARAT

Spring , Compression, Incl in 3

1шт.

18

NSS

NOT SOLD SEPARAT

Spring , Compression, Incl in 3

1шт.

19

NSS

NOT SOLD SEPARAT

Poppet, Incl in 3

1шт.

20

NSS

NOT SOLD SEPARAT

Spring , Compression, Incl in 3

1шт.

21

NSS

NOT SOLD SEPARAT

Spring , Compression, Incl in 3

1шт.

22

NSS

NOT SOLD SEPARAT

Seat, Incl in 3

1шт.

23

NSS

NOT SOLD SEPARAT

Piston, Incl in 3

1шт.

24

NSS

NOT SOLD SEPARAT

Solenoid, Incl in 3

1шт.

25

NSS

NOT SOLD SEPARAT

Cap, Incl in 3

1шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

27

LK00015

PLUG

2шт.

28

LJ019790

PLUNGER

4шт.

29

LG007590

COMPRESSION SPRING

4шт.

30

154491A1

O-RING

4шт.

31

154490A1

O-RING

4шт.

32

NSS

NOT SOLD SEPARAT

Plug, Incl in 33

4шт.

33

KHJ27370

VALVE

ASSY, Incl 2 - 32

1шт.

Выбрано товаров: 34
