Запчасти Case CX250D LC (88.100.35[157]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, RELIEF VALVE (88) - ACCESSORIES

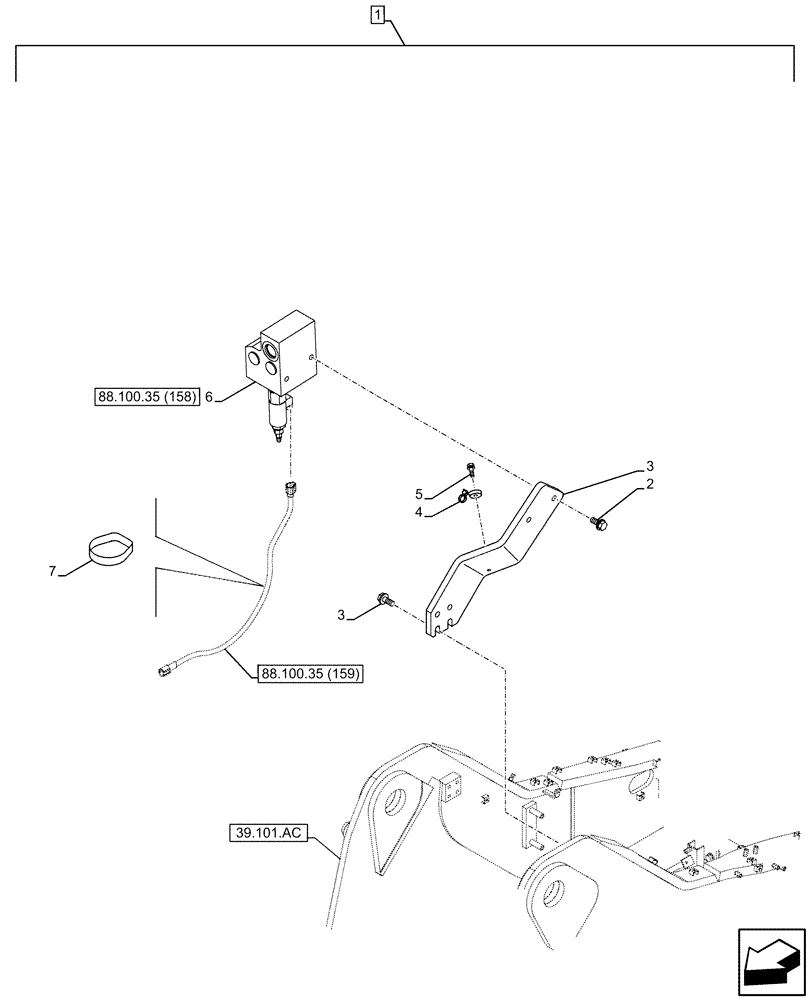

![Схема запчастей Case CX250D LC - (88.100.35[157]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, RELIEF VALVE (88) - ACCESSORIES](https://partsell.ru/storage/images/casece/5398902.png)
7
4
3
2
3
88.100.35 (158)
39.101.ac
5
1
88.100.35 (159)
6
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
KG1BP445-00
CONSTRUCTION DIA
Multi-Purpose with 3 Way Valve, Incl 2 - 7
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
2
KBJ22500
BRACKET
1шт.
3
166352A1
BOLT
M12 x 30mm
6шт.
4
KHR2584
CLAMP
M8
1шт.
5
KHJ1215
BOLT,Spcl
M8 x 25mm
1шт.
6
KHJ27370
VALVE
ASSY
1шт.
7
150496A1
MOUNTING CLIP
250mm
4шт.
Выбрано товаров: 8
